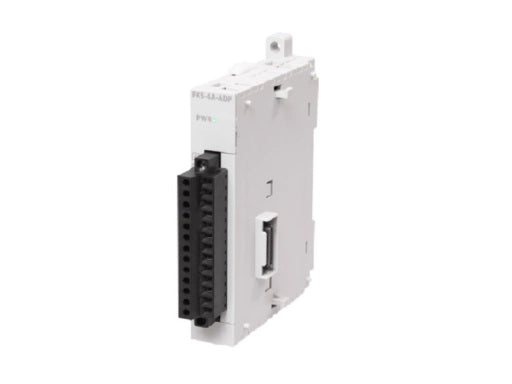

Mitsubishi FX5-4A-ADP Module FX54AADP

Description:

The FX5-4A-ADP is a high-performance analog input and output expansion module from Mitsubishi Electric, designed to extend the functionality of FX5 series programmable logic controllers (PLCs). This module features 4 channels of analog inputs and 4 channels of analog outputs, enabling precise measurement and control of analog signals such as temperature, pressure, and voltage. The FX5-4A-ADP is engineered for high accuracy and reliability, making it suitable for complex automation applications including process control and data acquisition. Its compact design and seamless integration capabilities ensure it enhances the versatility and efficiency of automation systems.

Technical Specifications:

• Type: Analog Input and Output Expansion Module
• Model: FX5-4A-ADP
• Number of Analog Inputs: 4
• Number of Analog Outputs: 4
• Input Type: Voltage (0-10V DC) or Current (4-20mA)
• Output Type: Voltage (0-10V DC) or Current (4-20mA)
• Resolution: 16-bit
• Input Accuracy: ±0.1% of Full Scale
• Output Accuracy: ±0.1% of Full Scale
• Conversion Time: 1ms per channel (typical)
• Power Supply: 24V DC
• Operating Temperature Range: 0°C to 55°C
• Dimensions: 90mm x 90mm x 75mm
• Weight: 200g
• Mounting: DIN rail mount
• Protection Class: IP20
