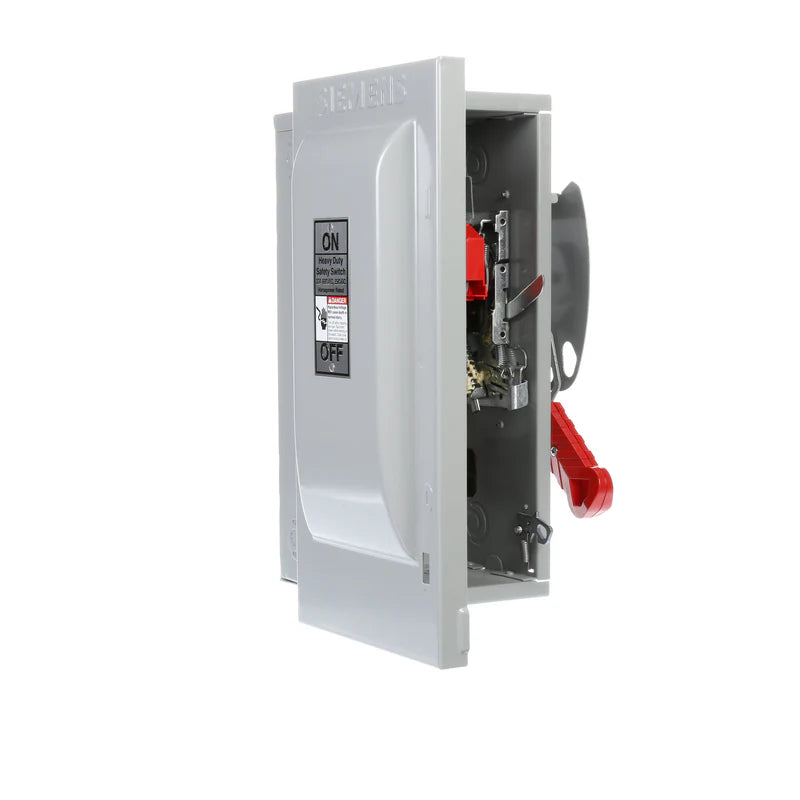

NEW Siemens HF361N 30 AMP FUSIBLE HEAVY DUTY SAFETY SWITCH 3P/4W 600 VAC 250 VDC

Description:

The Siemens HF361N is a 30 Amp fusible heavy-duty safety switch designed for robust electrical protection and reliable operation in demanding industrial and commercial environments. This switch features a three-pole, four-wire configuration with a voltage rating of 600 VAC and 250 VDC, making it suitable for high-voltage applications requiring secure and dependable circuit isolation. Equipped with fusible elements, the HF361N provides critical overcurrent protection, helping to safeguard electrical systems from damage due to overloads or short circuits. Its durable construction and easy-to-use design ensure both safety and convenience in managing electrical power. HF361N HEAVY DUTY SAFETY SWITCH 3 POLE 4 WIRE 600 VAC 250 VDC 30 AMP N1

Technical Specifications:

• Manufacturer: Siemens
• Model: HF361N
• Type: Fusible Heavy Duty Safety Switch
• Current Rating: 30 Amps
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 3
• Number of Wires: 4
• Fusible Type: Includes fusible elements for overcurrent protection
• Enclosure Type: NEMA Type 1 (Indoor) or Type 3R (Outdoor)
• Mounting Type: Surface Mount
• Operating Temperature Range: -20°C to 65°C
• Material: Galvanized Steel with Powder-Coat Finish
• Handle Type: Quick-make, quick-break mechanism
• Dimensions: 12.5 x 8.0 x 6.0 inches (approx.)
• Weight: 8 lbs (approx.)
• Certifications: UL Listed, CSA Certified
