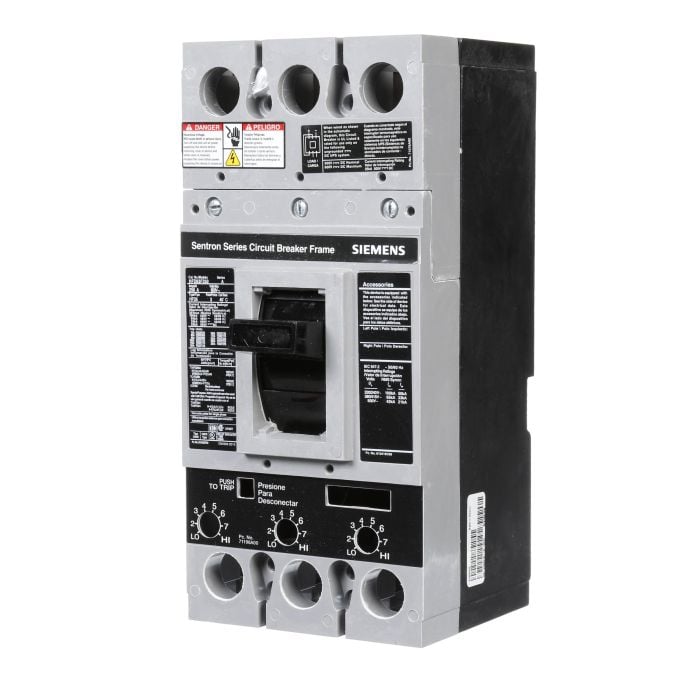

NEW Siemens SENTRON 250 AMP CIRCUIT BREAKER W/ 250 AMP TRIP 600 VAC HFD63F250

Description:

HFD63F250 CIRCUIT BREAKER FRAME SENTRON SERIES FRAME ONLY TYPE HFD 3 POLE 3 PHASE 250 AMP 600V BOLT-ON THERMAL MAGNETIC The Siemens HFD63F250 SENTRON Circuit Breaker is a high-performance, industrial-grade breaker designed to provide reliable protection in electrical systems. With a robust 250 amp trip capacity and a maximum voltage rating of 600 VAC, this circuit breaker is engineered for heavy-duty applications, ensuring the safe operation of electrical circuits under various load conditions. Its compact design allows for easy installation in standard electrical panels, while its durable construction ensures longevity and resistance to environmental factors. Ideal for both commercial and industrial settings, the HFD63F250 offers dependable overcurrent protection, helping to prevent damage to equipment and reduce downtime.

Technical Specifications:

• Manufacturer: Siemens
• Model: HFD63F250
• Type: SENTRON Circuit Breaker
• Current Rating: 250 Amps
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Interrupting Rating: 65 kAIC at 480V AC
• Frame Type: HFD (Heavy-Duty Frame)
• Trip Unit: 250 Amp Trip
• Mounting Type: Bolt-On
• Terminal Type: Load Lug
• Frequency: 50/60 Hz
• Operating Temperature Range: -20°C to 70°C
• Certifications: UL Listed, CSA Certified
• Dimensions: 10.5 x 5.0 x 4.0 inches (approx.)
• Weight: 7 lbs (approx.)
