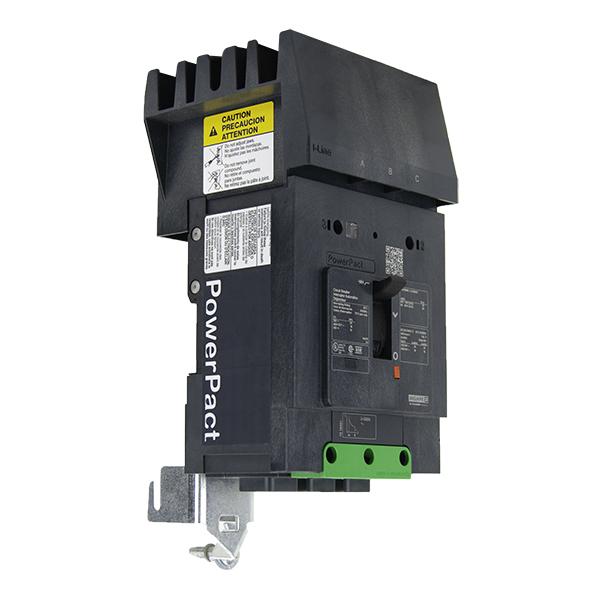

NEW SQUARE D 30 AMP I-LINE CIRCUIT BREAKER 600Y/347 VAC 3 POLE BJA36030

Description:

BJA36030 MOLDED CASE CIRCUIT BREAKER 30A 50-60HZ 3 POLE 600 VAC WYE 347 VAC The Square D BJA36030 is a high-performance molded case circuit breaker designed for industrial and commercial applications. It provides reliable protection against overloads and short circuits with a robust 3-pole configuration. This circuit breaker is rated for 30 Amps and 600 Volts AC, making it suitable for a wide range of electrical distribution systems. Its compact design allows for easy installation in space-constrained environments, while the thermal-magnetic trip unit ensures precise operation under varying electrical conditions. Built with Square D's trusted quality, the BJA36030 is ideal for safeguarding electrical circuits in demanding settings.

Technical Specifications:

• Manufacturer: Square D
• Model Number: BJA36030
• Type: Molded Case Circuit Breaker
• Poles: 3
• Current Rating: 30 Amps
• Voltage Rating: 600 Volts AC
• Interrupting Rating: 14 kA at 480V AC
• Trip Unit: Thermal-Magnetic
• Mounting Type: Plug-in
• Operating Temperature: -20°C to 70°C (-4°F to 158°F)
• Standards Compliance: UL 489, CSA C22.2 No. 5
• Dimensions: Approximately 6.50 x 4.13 x 3.00 inches (H x W x D)
• Weight: 2.8 lbs (1.27 kg)
