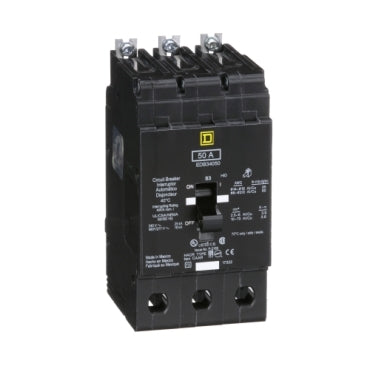

NEW SQUARE D EDB34050 BOLT-ON CIRCUIT BREAKER 50 AMP 480Y/277 VAC 3 POLE 25 kA

Description:

The Square D EDB34050 is a 3-pole molded case circuit breaker rated at 50 amps and designed for use in commercial and industrial electrical panels. With a 480Y/277V AC rating and a bolt-on mounting style, the EDB34050 provides reliable overcurrent protection for branch circuit applications. Its compact frame and thermal-magnetic trip unit make it suitable for panelboards requiring a high level of protection in a space-saving design.

TECHNICAL SPECIFICATIONS:
Manufacturer: Square D / Schneider Electric
Model Number: EDB34050
Type: Molded Case Circuit Breaker
Amperage: 50 Amps
Voltage Rating: 480Y/277 VAC
Interrupting Rating: 18 kA @ 480Y/277 VAC
Number of Poles: 3
Trip Type: Thermal Magnetic
Mounting Type: Bolt-On
Frame Type: EDB
Dimensions: Approx. 5.66 x 2.94 x 3.47 in (144 x 75 x 88 mm)
Weight: Approx. 2.5 lbs (1.13 kg)
