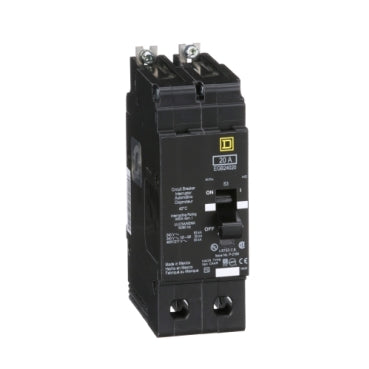

NEW SQUARE D EGB24020 20 AMP BOLT-ON CIRCUIT BREAKER 2 POLE 480Y/277 VAC

Description:

The Square D EGB24020 is a 2-pole, 20 Amp bolt-on molded case circuit breaker from the EGB series. Designed for commercial and industrial applications, this breaker provides reliable overcurrent protection in 480Y/277V AC systems. With a compact footprint and high interrupting capacity, it's well-suited for space-limited switchboards and panelboards.

TECHNICAL SPECIFICATIONS:
Manufacturer: Square D / Schneider Electric
Model Number: EGB24020
Series: EGB
Type: Bolt-On Molded Case Circuit Breaker
Poles: 2
Amperage Rating: 20 Amps
Voltage Rating: 480Y/277V AC
Interrupting Rating: 35 kA at 480Y/277V AC
Mounting Style: Bolt-On
Connection: Line and load side lugs
Trip Type: Thermal magnetic
Frame Size: 125A
Dimensions (H x W x D): Approx. 5.66 x 2.00 x 3.44 in (144 x 51 x 87 mm)
