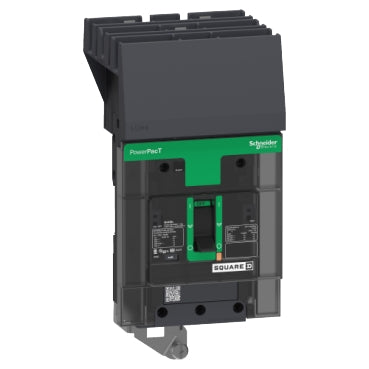

NEW SQUARE D POWERPACT 20 AMP I-LINE CIRCUIT BREAKER 600 VAC 3 POLE BJA36020

Description:

The Square D BJA36020 is a 3-pole molded case circuit breaker from the BJA series, rated for 600Y/347 VAC applications. With a current rating of 20 amps, it is ideal for industrial and commercial distribution systems requiring reliable overcurrent protection. The breaker features a thermal magnetic trip mechanism and bolt-on mounting for secure installation in panelboards.

TECHNICAL SPECIFICATIONS:
Manufacturer: Square D / Schneider Electric
Model Number: BJA36020
Series: BJA
Type: Molded Case Circuit Breaker
Poles: 3
Voltage Rating: 600Y/347 VAC
Current Rating: 20 Amps
Interrupting Rating: 14 kA @ 600 VAC
Trip Type: Thermal Magnetic
Mounting Type: Bolt-On
Frame Type: BJA
Terminal Type: Box lug
Frequency: 50/60 Hz
Dimensions: Approx. 6.5 x 4.1 x 3.0 in (165 x 104 x 76 mm)
Weight: Approx. 3.2 lbs (1.45 kg)
