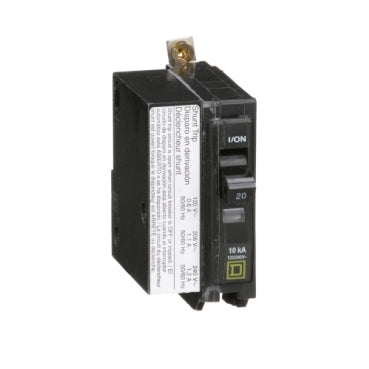

NEW SQUARE D QOB1201021 20 AMP CIRCUIT BREAKER W SHUNT 1 POLE 120/240 VAC

Description:

The Square D QOB1201021 is a 1-pole, 20 Amp bolt-on circuit breaker designed for use in load centers and panelboards. Known for its plug-on design with bolt-on hold-down capability, this breaker ensures a secure connection and reliable protection for branch circuits. It’s ideal for residential, commercial, and light industrial applications requiring compact and dependable overcurrent protection.

TECHNICAL SPECIFICATIONS:
Manufacturer: Square D / Schneider Electric
Model Number: QOB1201021
Type: QOB (Plug-on with bolt-on securing)
Amperage Rating: 20 Amps
Voltage Rating: 120/240V AC
Poles: 1
Interrupting Rating: 10,000 AIR
Mounting Style: Bolt-On
Connection: Box lug (wire range: 14–8 AWG Cu or Al)
Trip Type: Thermal magnetic
Dimensions: Approx. 3.0 x 1.0 x 2.91 in (76 x 25 x 74 mm)
Weight: Approx. 0.5 lbs (0.23 kg)
