Novotechnik

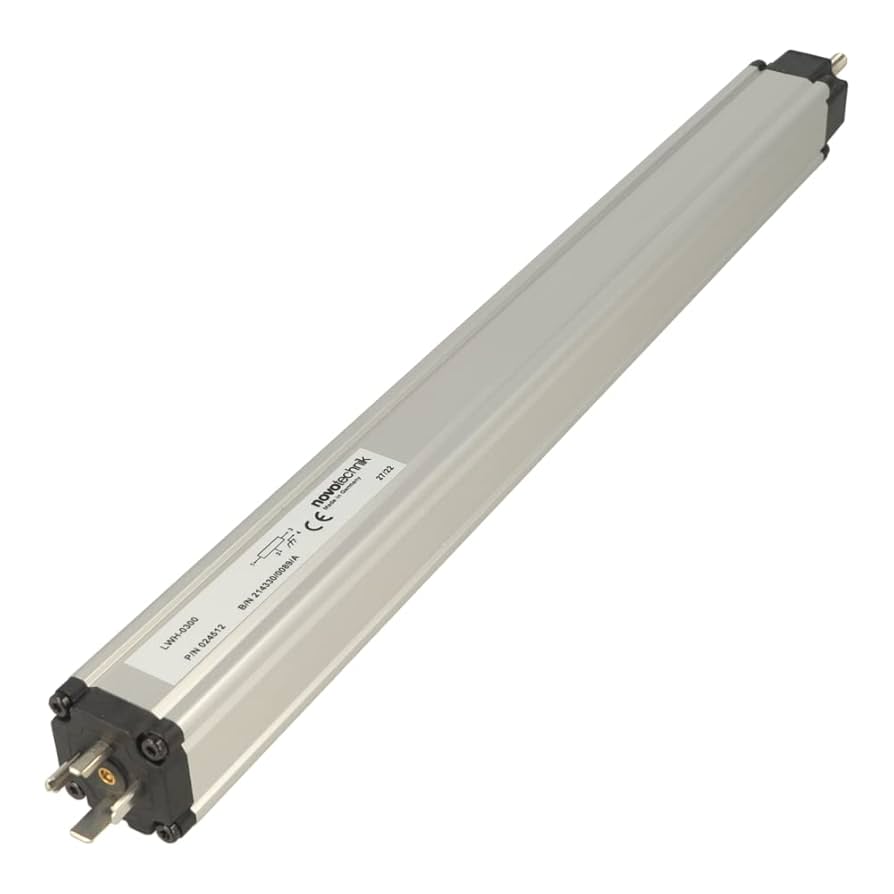

Novotechnik Linear Transducer LWH-0300/LWH 300 LWH0300/LWH300 1PC

Novotechnik Linear Transducer LWH-0300/LWH 300 LWH0300/LWH300 1PC

Condition
Regular price $208.00
Regular price Sale price $208.00
Sale Sold out
PayPal Google Pay Visa MasterCard Amex Venmo

Description:

LWH0300 POSITION TRANSDUCER POTENTIOMETRIC SERIES LWH 300 MM DEFINED ELECTRICAL RANGE 0.01 MM REPEATABILITY 5 KOHM NOMINAL RESISTANCE IP55 4-PIN PLUG SOCKET TO DIN 43650 (AKA: LWH-300) (024312) The Novotechnik LWH-0300 is a precise and durable linear transducer designed for accurate position sensing in various industrial applications. With a measurement range of 300 mm, it uses a conductive plastic resistance element to provide highly linear output for position feedback. The LWH series is known for its robustness, featuring a high degree of mechanical stability and a long service life, making it ideal for use in demanding environments such as factory automation, robotics, and hydraulic systems. The LWH-0300 offers reliable performance in applications that require high accuracy and durability.

Technical Specifications:

  • Type: Linear position transducer
  • Measurement Range: 300 mm (11.81 inches)
  • Linearity: ±0.04% of full-scale
  • Resolution: Infinite (dependent on the signal conditioning)
  • Output Signal: Analog (resistance-based)
  • Resistance: 5 kΩ
  • Operating Voltage: 42V DC max
  • Operating Temperature: -30°C to +100°C (-22°F to +212°F)
  • Mechanical Life: Over 100 million movements
  • Protection Class: IP65 (dust-tight and protected against water jets)
  • Mounting: Rod or slider mounting options
  • Housing Material: Anodized aluminum for corrosion resistance
  • Dimensions: Approximately 300 mm stroke length with a compact housing design
  • Weight: 0.4 kg (0.88 lbs)
