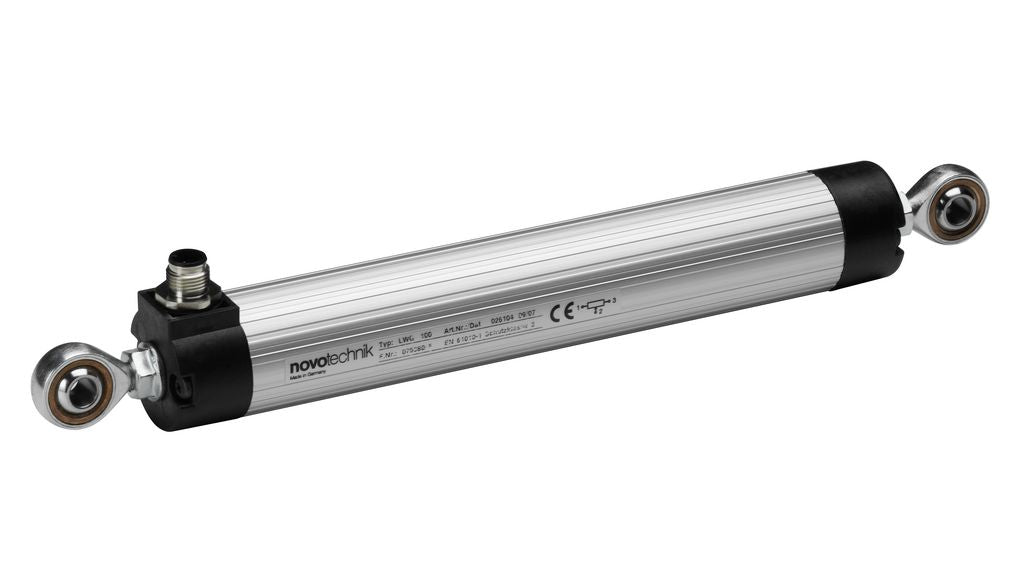

Novotechnik LWG-0225 Position Transducer LWG225

Description:

LWG0225 TRANSDUCER PIVOT HEAD MOUNTING SLIDE BEARING CONNECTOR M12X1 / 4-PIN / A-CODED DEFINED ELECTRIC RANGE 225 MM (026109) The Novotechnik LWG-0225 is a high-precision linear position transducer with a measuring range of 225 mm. This transducer is part of the LWG series, known for its robust design and high durability, offering accurate and reliable position measurement for various industrial applications. The LWG-0225 uses a conductive plastic resistance element, which ensures long-term stability and smooth, precise output signals. It is ideal for demanding environments, such as automation systems, hydraulic controls, and machine tools, where reliable and repeatable position feedback is crucial.

Technical Specifications:

• Type: Linear position transducer
• Measurement Range: 225 mm (8.86 inches)
• Linearity: ±0.05% of full-scale
• Resolution: Infinite (depends on signal conditioning)
• Output Signal: Analog (resistance-based)
• Resistance: 5 kΩ
• Operating Voltage: 42V DC max
• Operating Temperature: -30°C to +100°C (-22°F to +212°F)
• Mechanical Life: Over 25 million movements
• Protection Class: IP65 (dust-tight and protected against water jets)
• Housing Material: Anodized aluminum for corrosion resistance
• Rod Material: Stainless steel
• Mounting: Rod and flange mount
• Dimensions: Stroke length of 225 mm with compact overall housing
• Weight: Approximately 0.35 kg (0.77 lbs)
