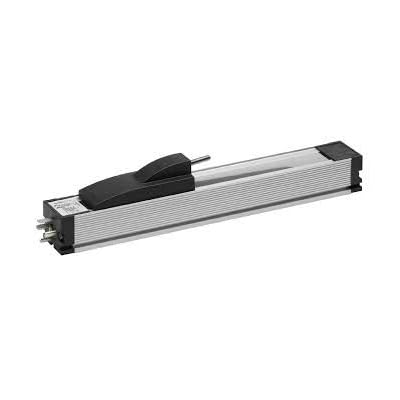

Novotechnik TLH-0225 TLH 225 TLH0225 Position Transducer

Description:

The Novotechnik TLH-0225 Linear Position Transducer is a potentiometric position sensor used in industrial measurement and control systems. Commonly installed in hydraulic systems, automation machinery, and testing equipment to provide precise linear position feedback. Maintenance teams, OEMs, and system integrators use this transducer for replacement, retrofit, and accurate position monitoring.

Applications:

The Novotechnik TLH-0225 Linear Position Transducer is used in industrial environments requiring precise displacement measurement, including hydraulic cylinders, presses, injection molding machines, and automated production equipment. It is ideal for applications that demand high accuracy, low drift, and reliable performance under varying operating conditions.

Technical Specifications:

• Brand: Novotechnik
• Part Number: TLH-0225
• Product Type: Linear Position Transducer (Potentiometric)
• Measurement Range: 225 mm
• Technology: Potentiometric (voltage divider principle)
• Output Signal: Analog (resistance / voltage divider)
• Linearity: ±0.07% typical
• Repeatability: 0.01 mm
• Nominal Resistance: 5 kΩ
• Maximum Operating Voltage: 42 V
• Mounting Type: Clamp mount / profile mounting
• Design: Rodless profile with sliding actuator
• Application: Linear position measurement and feedback

Common Replacements:

• Novotechnik TLH-0200
• Novotechnik TLH-0250
• Gefran PY2-C-225
