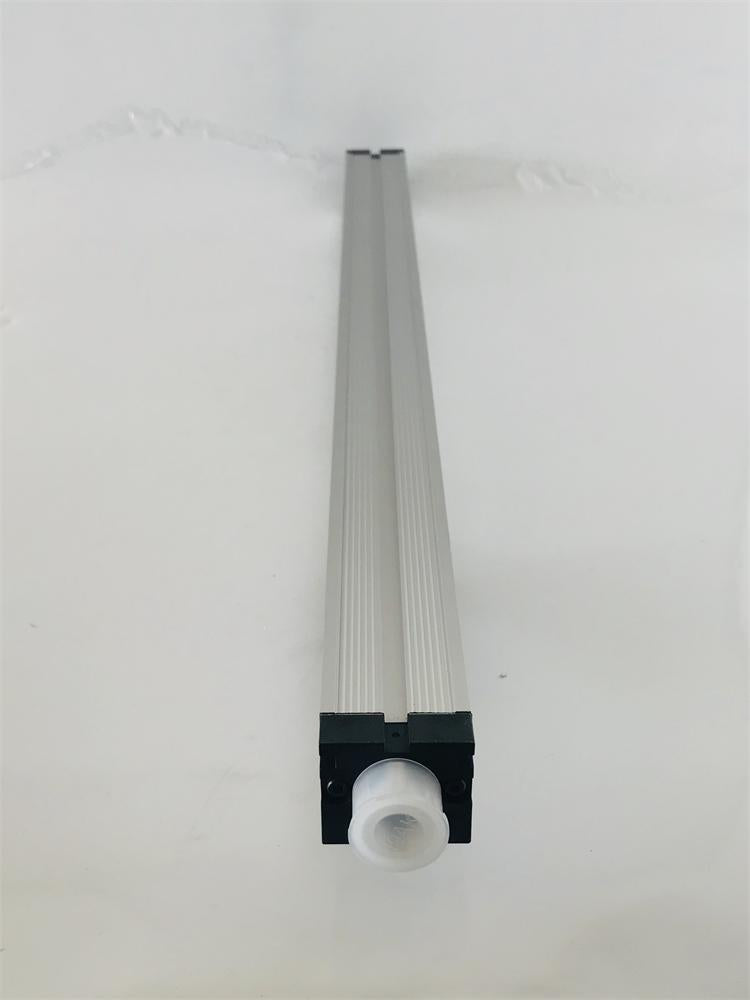

Novotechnik TLH2750 LINEAR POSITION TRANSDUCER POTENTIOMETRIC TLH2750

Description:

The Novotechnik TLH2750 is a high-precision linear position transducer designed for applications requiring long-range displacement measurement up to 2750mm. As part of the TLH series, it features a robust aluminum housing and a sliding contact system that provides accurate, continuous analog output. Commonly referred to as an “electronic ruler,” the TLH2750 is ideal for use in injection molding machines, presses, and other industrial machinery where long-stroke position feedback is essential.

TECHNICAL SPECIFICATIONS
Model: TLH2750
Stroke Length: 2750 mm
Output Signal: Analog (typically 0–10 V or 4–20 mA depending on configuration)
Resolution: Infinite (limited by signal conditioning)
Linearity: ±0.04% of full scale
Repeatability: ≤ 0.01 mm
Supply Voltage: 24 VDC (typical)
Wiper Current: Max 0.01 μA
Housing Material: Anodized aluminum
Mounting: Adjustable clamps
Connector: 3-pin or 5-pin DIN plug (depending on version)
Protection Class: IP40
Operating Temperature: -30°C to +100°C
