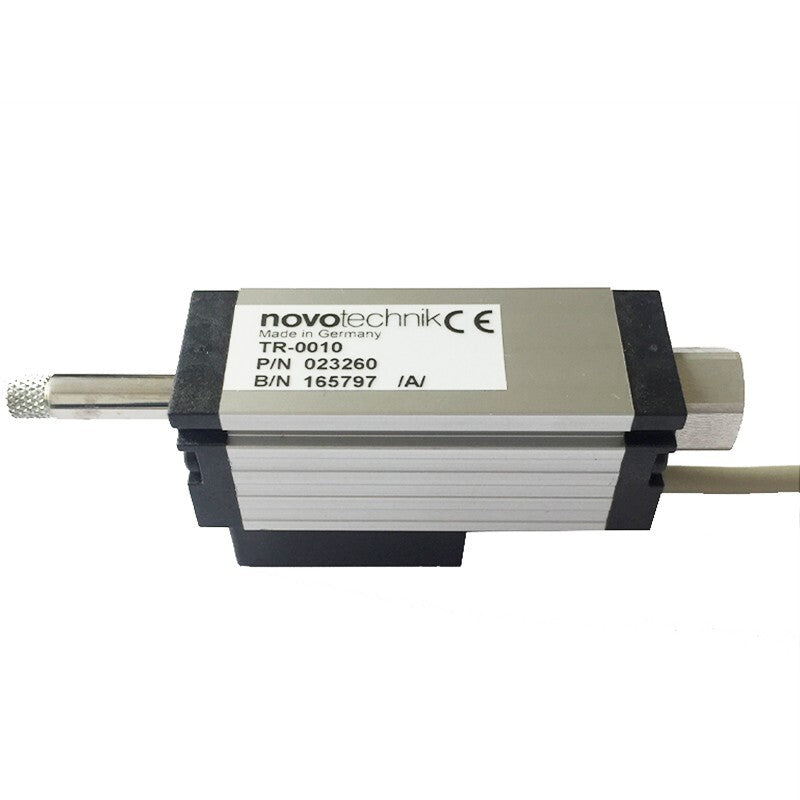

Novotechnik TR-0010 Linear Transducer TR0010

Description:

023260 POSITION TRANSDUCER TYPE TR-0010 ELECTRICAL RANGE 10 MM STROKE 12 MM NOMINAL RESISTANCE 1 K MAX WIPER CURRENT 10 MA MAX APPLIED VOLTAGE 24 VDC The Novotechnik TR-0010 is a compact and precise linear transducer, designed to provide accurate position measurement over short distances. With a 10 mm stroke length, this transducer is ideal for applications requiring high-resolution feedback in small-scale or precision machinery. The TR series utilizes a resistive sensing element, offering a high degree of linearity and long-term reliability. It is commonly used in applications such as medical devices, robotics, automation systems, and other precision engineering tasks.

Technical Specifications:

• Type: Linear position transducer
• Measurement Range: 10 mm (0.39 inches)
• Linearity: ±0.1% of full-scale
• Resolution: Infinite (dependent on signal conditioning)
• Output Signal: Analog (resistance-based)
• Resistance: 1 kΩ
• Operating Voltage: Up to 42V DC
• Operating Temperature: -30°C to +100°C (-22°F to +212°F)
• Mechanical Life: Over 100 million movements
• Protection Class: IP40 (protection against solid objects larger than 1 mm)
• Mounting: Flange or rod mounting
• Housing Material: Anodized aluminum for strength and corrosion resistance
• Dimensions: Compact 10 mm stroke length
• Weight: Approximately 0.1 kg (0.22 lbs)
