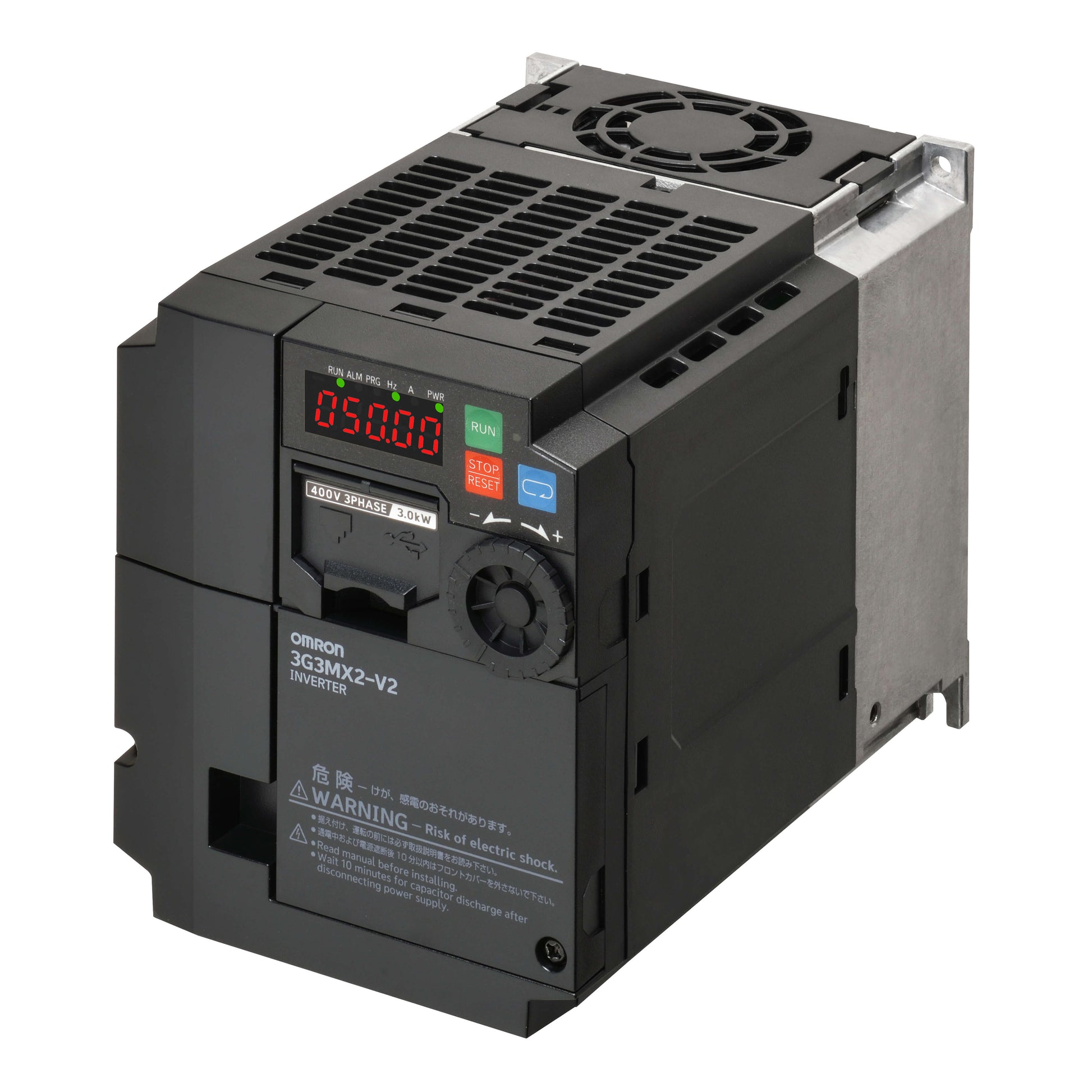

Omron 3G3MX2-AB007 INVERTER AC DRIVE 240V 1-PHASE 1HP 0.7KW CT 5.0A IP20 3G3MX2AB007
Omron 3G3MX2-AB007 INVERTER AC DRIVE 240V 1-PHASE 1HP 0.7KW CT 5.0A IP20 3G3MX2AB007
Couldn't load pickup availability





DESCRIPTION
The Omron 3G3MX2-AB007 is a compact and powerful variable frequency drive (VFD) from the MX2 series, designed for precise speed control and torque performance in small motor applications. It delivers 0.75 kW (1 HP) output power and is ideal for applications such as conveyors, fans, pumps, and other automated machinery. With built-in safety, advanced I/O, and fieldbus compatibility, it supports a wide range of industrial environments.
TECHNICAL SPECIFICATIONS
Model Number: 3G3MX2-AB007
Series: MX2
Drive Type: AC Variable Frequency Drive (VFD)
Input Voltage: 200–240V AC
Input Phase: Single-Phase
Output Voltage: 3-Phase 200–240V AC
Output Power: 0.75 kW (1 HP)
Output Current: 4.2 A
Frequency Range: 0.1 to 400 Hz
Control Method: Sensorless vector control, V/f control
Overload Capacity: 150% for 60 seconds
Braking: Built-in dynamic braking transistor
Digital Inputs: 6
Digital Outputs: 1
Analog Inputs: 2 (1 voltage, 1 current)
Communication: Modbus RTU (RS-485), optional fieldbus cards available
Cooling Method: Forced air cooling
Protection: Overcurrent, Overvoltage, Undervoltage, Overheat, Ground fault
Mounting: DIN rail or panel
Dimensions: Approx. 128 x 85 x 150 mm (H x W x D)
Weight: Approx. 1.1 kg
Manufacturer: Omron Corporation
