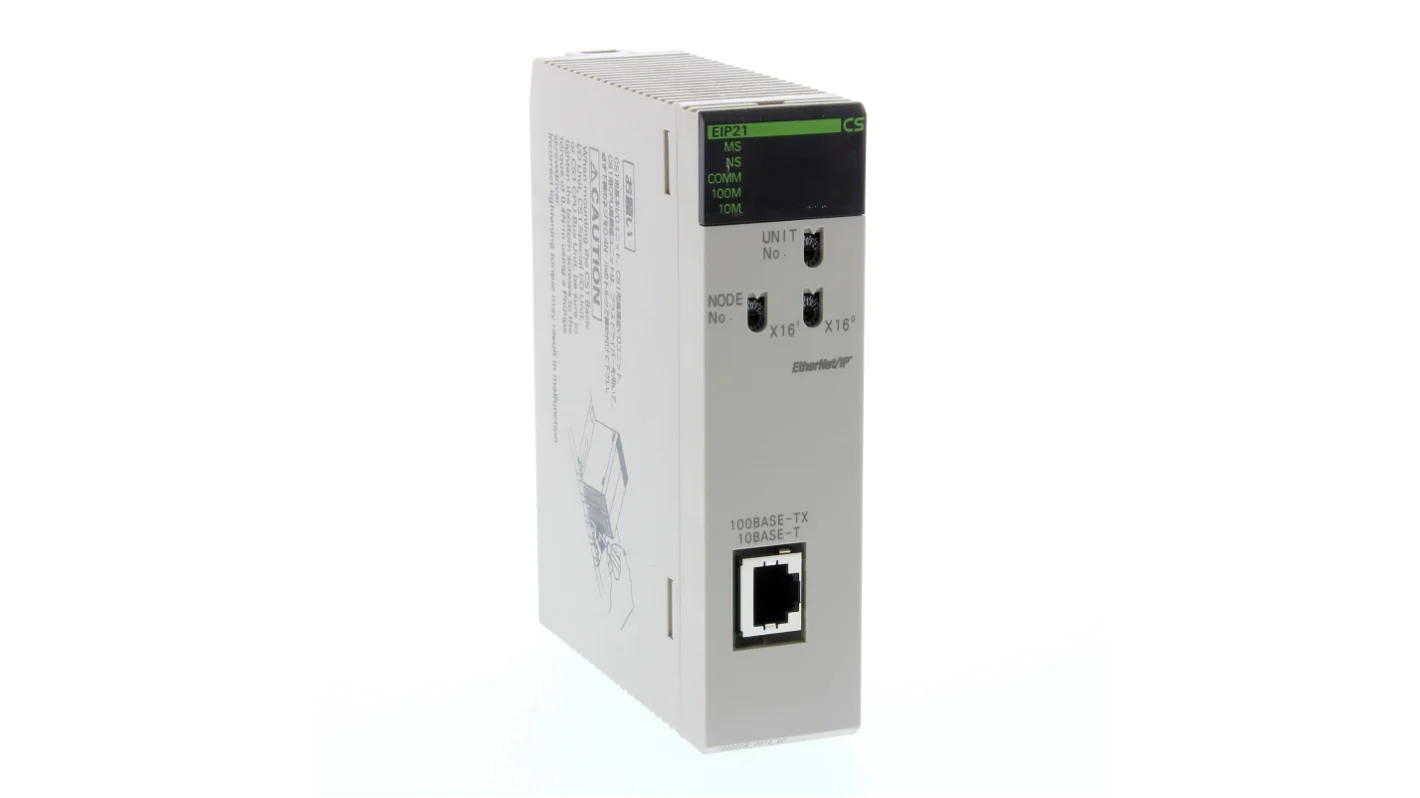

Omron Analog Module CS1W-EIP21 CS-series EtherNet/IP Unit CS1WEIP21

Description:

The Omron CS1W-EIP21 is an EtherNet/IP communication unit designed for use with CS1 and CJ series PLCs, enabling seamless integration into industrial Ethernet networks. This module allows Omron PLCs to act as EtherNet/IP scanners or adapters, facilitating real-time data exchange with other network devices such as PLCs, HMIs, vision systems, and drives. With support for tag-based communication, automatic IP addressing, and diagnostic features, the CS1W-EIP21 ensures flexible and reliable communication in factory automation and process control environments.

TECHNICAL SPECIFICATIONS:

Model: CS1W-EIP21
Manufacturer: Omron
Function: EtherNet/IP Communication Unit
Compatible Series: CS1, CJ1, CJ2, and NJ-series PLCs
Network Protocol: EtherNet/IP (compliant with CIP protocol)
Communication Speed: 10/100 Mbps (auto-sensing)
Connection Type: RJ45 Ethernet port (1 port)
Max Connections: 256 connections total (64 max per unit)
Max Data Capacity: 1448 bytes per message
Tag-Based Communication: Supported
IP Address Assignment: Manual or via DHCP/BOOTP
Diagnostic Features: Built-in web server, error logging, status monitoring
LED Indicators: Link, Activity, Module Status, Network Status
Power Supply: 5V DC (supplied from PLC backplane)
Mounting: Direct mount on PLC rack
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Dimensions: Approx. 31 mm x 90 mm x 100 mm (W x H x D)
Weight: Approx. 200 g (0.44 lbs)
