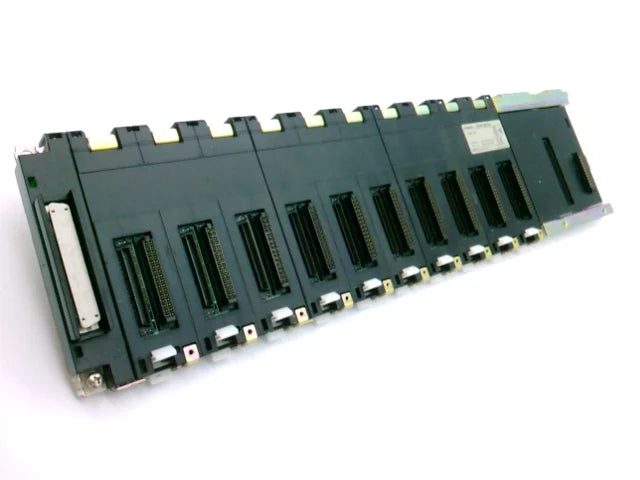

Omron CS1W-BC103 Automation and Safety Programmable BACKPLANE CS1 CPU 10 SLOTS CS1WBC103

Description:

The Omron CS1W-BC103 PLC backplane is used in Omron CS1 series PLC systems to provide a mounting base and internal bus connection for CPU, I/O, and special function modules. Commonly installed in industrial control panels, manufacturing systems, process automation lines, and large-scale automation setups requiring modular PLC configuration. Maintenance teams and system integrators use this part for system expansion, replacement, and maintaining reliable PLC architecture.

Applications:

The Omron CS1W-BC103 backplane is used in industrial environments to support modular PLC configurations for machine control and process automation. It is widely applied in factory automation systems, material handling equipment, production lines, and process industries where stable integration and communication between PLC modules are essential.

Technical Specifications:

• Manufacturer Part Number (MPN): CS1W-BC103
• Product Type: PLC Base Unit / Backplane
• Series: CS1 Series
• Number of Slots: 10 slots
• Mounting Type: Rack / panel mount
• Power Supply: Supplied via connected power supply unit
• Compatibility: Omron CS1 series modules (CPU, I/O, special units)
• Bus Type: Internal backplane bus
• Expansion Capability: Supports expansion racks
• Connection Type: Slot-based module connection
• Indicators: System status indicators (module dependent)
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CS1W-BC082
• Omron CS1W-BC053
• Omron CJ1W-BC101
