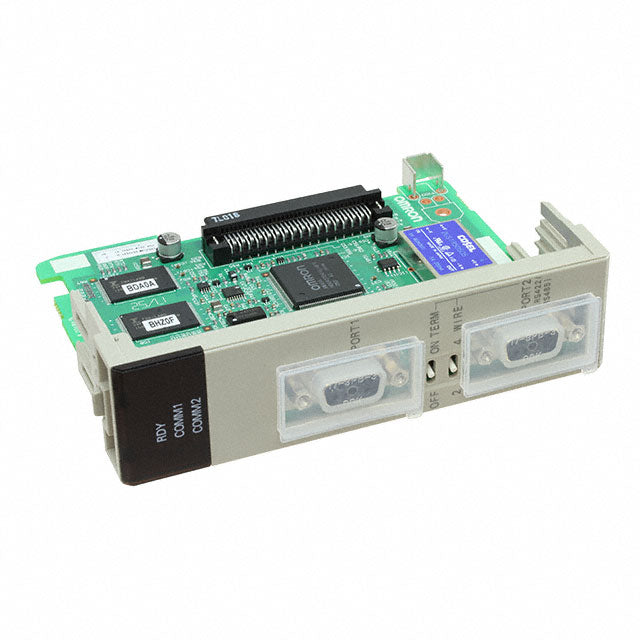

Omron CS1W-SCB41-V1 Automation and Safety Multi Application Controllers Board CS1WSCB41V1

Description:

The Omron CS1W-SCB41-V1 Serial Communications Board is a PLC expansion module used in Omron CS-series automation systems. Commonly installed on the CPU unit to enable serial communication between the PLC and external devices such as HMIs, computers, and other controllers. Maintenance teams, OEMs, and system integrators use this board for replacement, retrofit, and expanding communication capabilities in industrial control systems.

Applications:

The Omron CS1W-SCB41-V1 Serial Communications Board is used in industrial automation systems requiring flexible device connectivity, including manufacturing lines, process control systems, and machine automation. It is ideal for applications that demand communication with multiple devices, protocol customization, and reliable data exchange between PLCs and peripheral equipment.

Technical Specifications:

• Brand: Omron
• Part Number: CS1W-SCB41-V1
• Product Type: Serial Communications Board (PLC Expansion Module)
• Series: CS1W (CS Series)
• Communication Ports: 1 × RS-232C, 1 × RS-422/485
• Supported Protocols: Host Link, NT Link, Modbus, user-defined protocols
• Function: Enables serial communication between PLC and external devices
• Mounting Type: CPU option board (slot-mounted)
• Features: Protocol macro support, memory card backup capability
• Hot Swap Capability: Supported
• Compatibility: Omron CS-series PLC systems
• Application: Industrial communication and data exchange

Common Replacements:

• Omron CS1W-SCU41-V1
• Omron CJ1W-SCU41-V1
• Omron CP1W-CIF41
