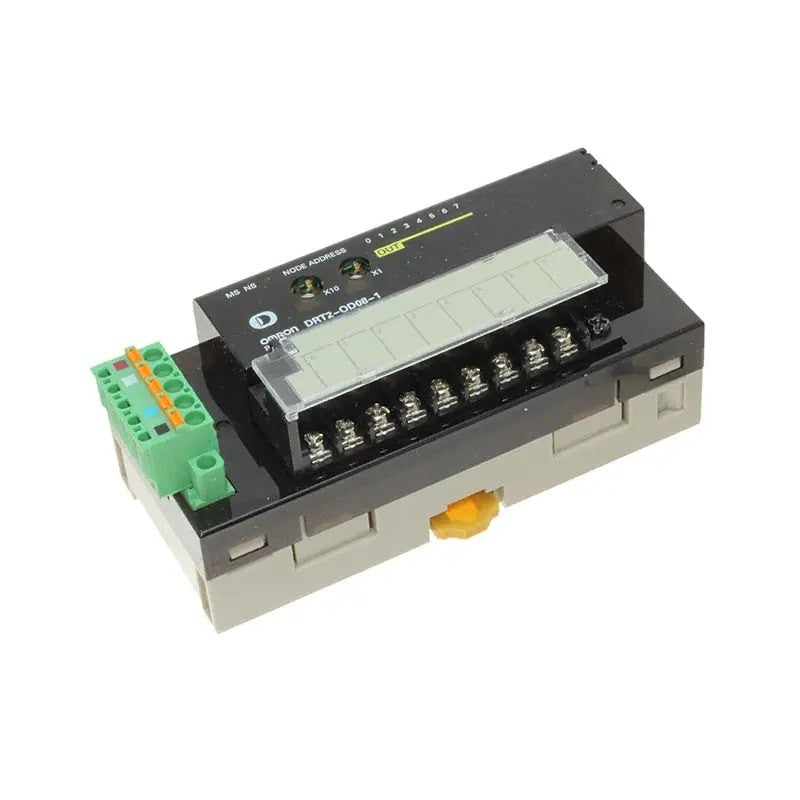

Omron DRT2-OD08 Automation and Safety Remote I/O Terminals With Transistors DRT2OD08

Description:

The Omron DRT2-OD08 remote I/O terminal is used in industrial automation systems to provide distributed transistor output control over DeviceNet networks. Commonly installed in control panels, conveyor systems, packaging machines, and production lines requiring decentralized I/O architecture. Maintenance teams and system integrators use this part for system expansion, replacement, and enabling flexible remote output control in automated systems.

Applications:

The Omron DRT2-OD08 remote I/O terminal is used in industrial environments for controlling actuators, solenoids, and other output devices via networked PLC systems. It is widely applied in factory automation, material handling systems, assembly lines, and process equipment where distributed control and reduced wiring complexity are required.

Technical Specifications:

• Manufacturer Part Number (MPN): DRT2-OD08
• Product Type: Remote I/O Terminal (Transistor Output Unit)
• Series: DRT2 Series
• Communication Protocol: DeviceNet
• Output Points: 8 outputs
• Output Type: Transistor (NPN)
• Rated Voltage: 24 VDC
• Rated Current: Approx. 0.5 A per point
• Connection Type: Screw terminal
• Mounting Type: DIN rail mount
• Power Supply: External 24 VDC supply
• Protection Features: Short circuit protection, overload protection
• Indicators: LED status indicators for each output
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron DRT2-OD16
• Omron DRT2-MD16
• Omron CJ1W-OD211
