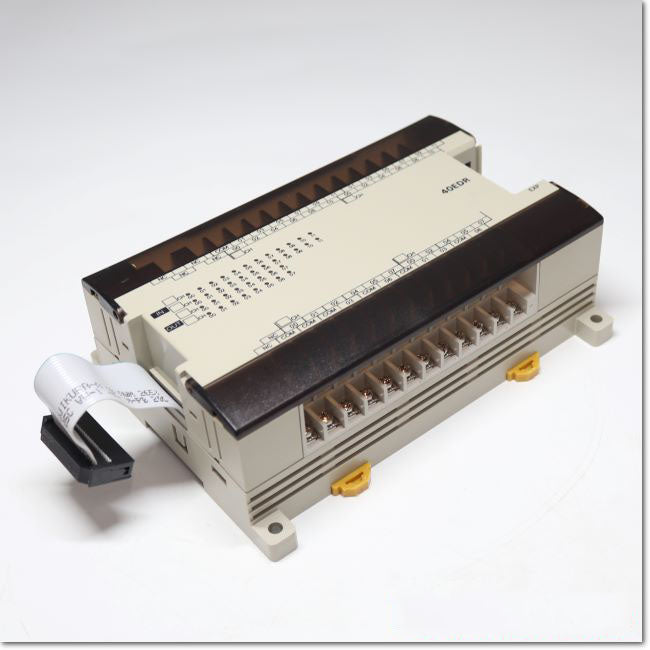

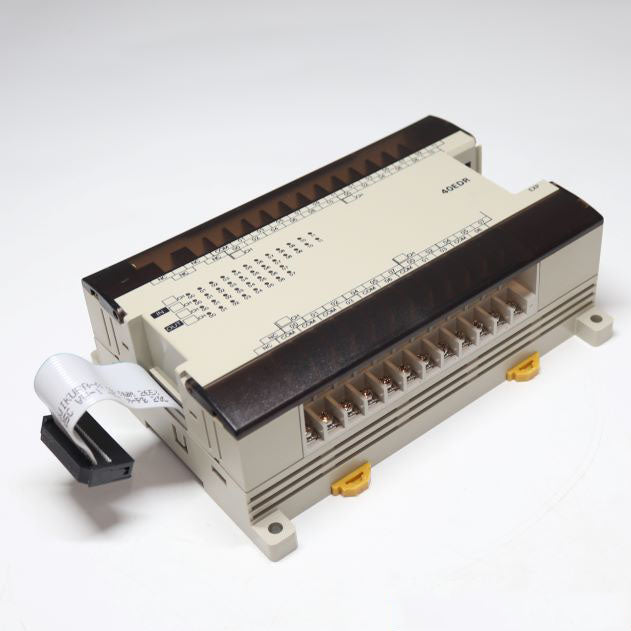

Omron Automation and Safety Extension Module CPM1A-40EDR CPM1A40EDR

Description:

CPM1A40EDR DISCONTINUED BY MANUFACTURER I/O MODULE 24 VDC INPUT 16 RELAY OUTPUTS EXPANSION I/O UNIT RELAY I/O 24 VDC RES / 250 V 5 MA 240 VAC The CPM1A-40EDR is part of Omron's CPM1A series of PLCs, offering a high degree of flexibility and reliability in a compact format. With 40 input/output (I/O) points, this PLC is designed to handle a variety of control tasks, making it ideal for small to medium-sized automation projects. The CPM1A-40EDR features built-in digital I/O, including 24 inputs and 16 outputs, and supports both sourcing and sinking configurations. It also includes a powerful CPU for efficient processing and control, along with a range of communication options for integration with other systems. Its user-friendly design and robust construction make it suitable for demanding industrial applications.

Technical Specifications:

• Model: CPM1A-40EDR
• I/O Configuration:
• Digital Inputs: 24 points (sinking type)
• Digital Outputs: 16 points (sourcing type)
• Input Voltage:
• DC Inputs: 24V DC
• Input Signal: NPN (sinking) type
• Output Voltage:
• DC Outputs: 24V DC
• Output Current: 0.5A per point, 4A total
• Processing Speed: 0.8 µs per instruction (typical)
• Memory:
• Program Memory: 2KB
• Data Memory: 512 bytes
• Communication Ports:
• Programming Port: Serial RS-232C for programming and diagnostics
• Expansion: Compatible with Omron's expansion modules for additional I/O
• Power Supply:
• Operating Voltage: 24V DC ±10%
• Power Consumption: Approximately 10W
• Operating Temperature Range: 0°C to +55°C
• Mounting Type: DIN rail mount
• Dimensions: 90 mm x 90 mm x 60 mm (W x H x D)
• Weight: Approximately 0.7 kg
