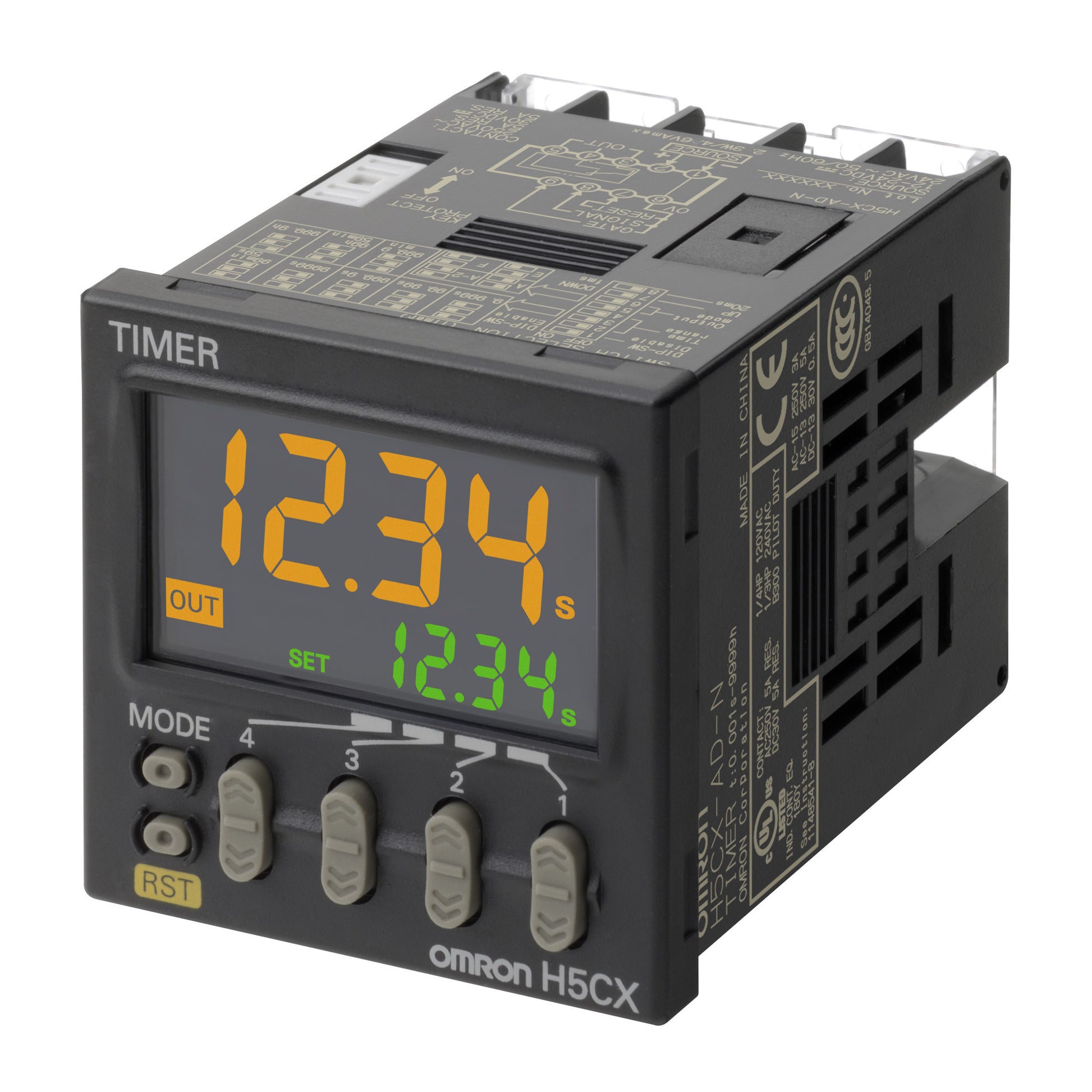

Omron H5CX-A-N Automation and Safety Digital Chronograph Timer Relay H5CXAN

Description:

The Omron H5CX-A-N Digital Chronograph Timer Relay is used in industrial timing control systems for precise time-based switching and process control. Commonly installed in packaging machines, conveyor systems, assembly equipment, and automated production lines. Maintenance teams and system integrators use this part for replacement, retrofit, and improving timing accuracy in automation systems.

Applications:

The Omron H5CX-A-N is utilized in industrial environments requiring reliable and flexible timing functions. It is widely applied in material handling systems, filling and sealing machines, food processing equipment, and machine control panels where accurate delay, interval, and cycle timing are essential for efficient operation.

Technical Specifications:

• Manufacturer Part Number (MPN): H5CX-A-N / H5CXAN
• Product Type: Digital Timer Relay (Chronograph Timer)
• Series: Omron H5CX Series
• Supply Voltage: 100 to 240 VAC
• Timing Range: Wide multi-range timing settings
• Output Type: Relay output
• Control Modes: ON-delay, OFF-delay, interval, cycle modes
• Display Type: Dual digital display
• Mounting Type: Panel mount
• Reset Method: Manual / external reset
• Protection Rating: IP66 (front panel)
• Operating Temperature: -10°C to 55°C

Common Replacements:

• Omron H5CX-A11-N
• Omron H3CR-A8
• Omron H5CN-XAN
