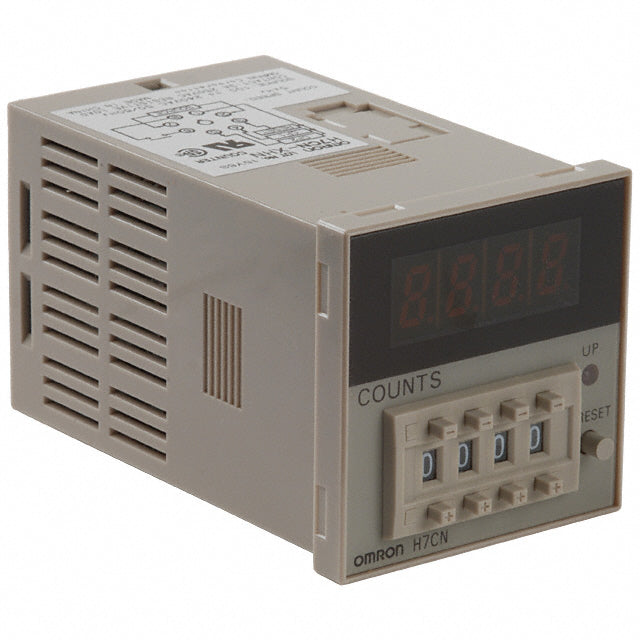

Omron Automation and Safety H7CN-BLN Counter Count 100-240VAC 12-48VDC

Description:

H7CNBLNAC100240 COUNTER DIGITAL 30CPS 4DIGIT LED 100-240VAC DIN RAIL SPST-NO The H7CN-BLN is a sophisticated digital counter from Omron’s H7CN series, designed to provide accurate and reliable counting and measurement in industrial automation applications. This model features a large, easy-to-read 6-digit LED display and supports a wide range of counting functions, including totalizing, batch counting, and preset operations. The H7CN-BLN offers various input options and can handle high-speed counting tasks with precision. Its versatile configuration options and robust design make it an ideal choice for integrating into control systems that require accurate counting and monitoring capabilities.

Technical Specifications:

• Model: H7CN-BLN
• Type: Digital Counter
• Display: 6-digit LED
• Counting Range: 0 to 999,999
• Input Type:
• Counter Inputs: NPN or PNP (selectable)
• Pulse Frequency: 0 to 10 kHz
• Output Type:
• Relay Output: 2 relay outputs (SPST-NO)
• Transistor Output: 1 transistor output (NPN or PNP)
• Operating Voltage: 24V DC (models available with different voltage options)
• Current Consumption: 100 mA (typical)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +65°C
• Dimensions (W x H x D): 48 x 48 x 80 mm
• Weight: Approximately 150 g
• Mounting Type: Panel mountable
• Environmental Protection: IP40 (front panel), IP20 (rear)
• Compliance: RoHS compliant
