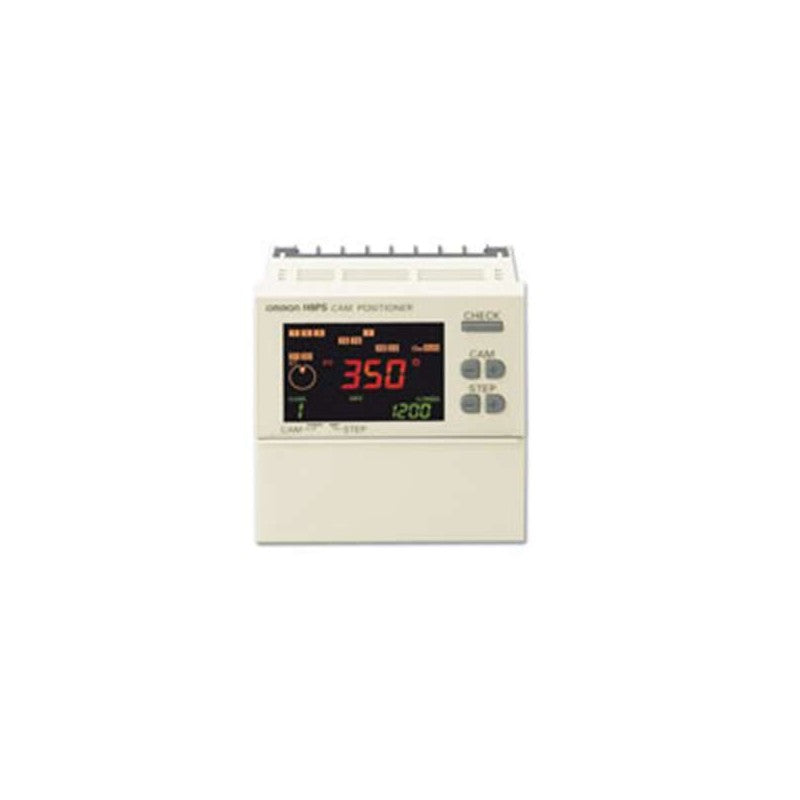

Omron Automation and Safety H8PS-8B DC24 Compact Cam Positioner High Speed

Description:

The Omron H8PS-8B DC24 is an 8-output programmable cam positioner designed to control multiple outputs based on rotary encoder input. This unit is ideal for precise timing and sequence control in rotary-based machines such as labeling systems, indexing tables, and packaging equipment. It operates on 24V DC power and allows flexible output settings with up to 8 cams (outputs) programmable across a full 360° range. The front display panel and dial make it user-friendly and easy to configure, while its compact design ensures seamless integration into control panels.

TECHNICAL SPECIFICATIONS:

Product Type: Programmable Cam Positioner
Model: H8PS-8B DC24
Power Supply: 24V DC
Number of Outputs: 8 transistor outputs
Output Type: NPN open collector
Control Input: Rotary encoder input (line driver or open collector)
Maximum Input Frequency: 50 kHz
Display: LED 6-digit, with dial for manual setting
Angular Range: 0°–359.9°, programmable in 0.1° increments
Output Capacity: 100 mA max per output
Internal Memory: Non-volatile memory for cam data
Mounting: Panel mount
Dimensions: 96 mm x 96 mm x 110 mm (W x H x D)
Operating Temperature: –10°C to +55°C (14°F to 131°F)
Weight: Approx. 500 g (17.6 oz)
