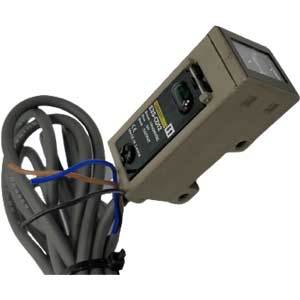

Omron Automation E3S-CD12 REFLECTIVE Photoelectric Switch Sensor 2M 30V E3SCD12

Description:

E3SCD12 SENSOR 2M DIFFUSE NPN/PNP HORZONTAL Product Description The Omron E3S-CD12 is a reflective photoelectric switch sensor designed for reliable and accurate object detection in industrial automation applications. With a sensing range of up to 2 meters, this sensor provides dependable performance for detecting the presence or absence of objects using reflected light. It operates on a 30V DC power supply and features a compact, durable design suitable for various environments. The E3S-CD12 is ideal for applications where space is limited and precise detection is required.

Technical Specifications:

• Model: E3S-CD12
• Type: Reflective Photoelectric Switch Sensor
• Sensing Method: Reflective (using reflected light)
• Sensing Range: Up to 2 meters
• Output Type: NPN or PNP (configurable)
• Operating Voltage: 30 VDC
• Current Consumption: 15 mA (typical)
• Response Time: 1 ms (typical)
• Protection Rating: IP67 (dust-tight and water-resistant)
• Operating Temperature: -25°C to 55°C
• Mounting Type: Panel or Surface Mount
