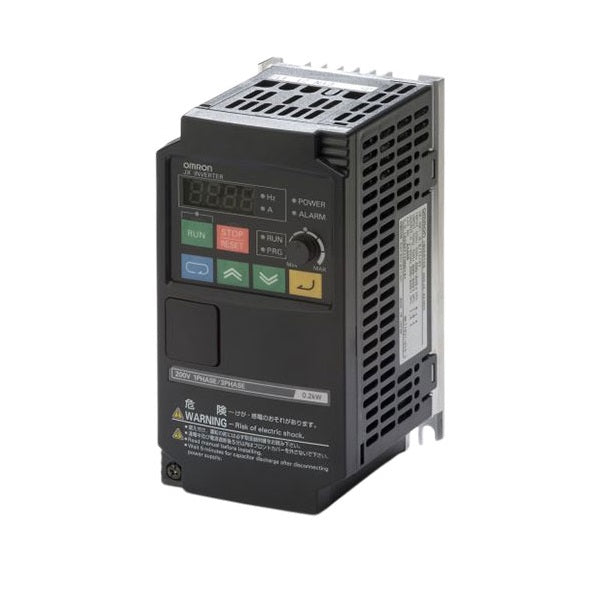

Omron Automation & Safety 3G3JZ-AB007 System Drive Programmable Logic Controller 3G3JZAB007

Description:

OMRON 3G3JZ-AB007 Product information and technical parameters： Brand: OMRON Name: V/F controlled converter Model: 3G3JZ-AB007 Function name: single phase 200V. Power: 0.75KW. Maximum output voltage: three phase 200 ~ 240VAC (corresponding input voltage). Rated voltage, frequency: single phase power supply 200 ~ 50/60Hz, 240V. Cooling way: natural wind cooling. Weight: 1.1kg. The 3G3JZ-AB007 is a high-performance servo drive from Omron, designed to offer precise control and reliable performance for industrial automation systems. This servo drive supports advanced motion control applications with its capability to drive a range of servo motors efficiently. Featuring a compact design, the 3G3JZ-AB007 provides smooth and accurate control of speed, torque, and position, making it ideal for use in applications requiring high precision and responsiveness. Its robust construction and intuitive setup make it suitable for demanding environments where reliable performance is crucial.

Technical Specifications:

• Model: 3G3JZ-AB007
• Type: Servo Drive
• Output Power: 0.75 kW (750W)
• Input Voltage: 200V to 230V AC, single-phase
• Current Rating: 3.5 A (rated)
• Communication Protocols: Supports Omron's proprietary communication protocols for seamless integration with PLCs and other control systems
• Control Modes: Position, speed, and torque control
• Feedback Types: Encoder feedback (incremental or absolute)
• Overload Capacity: 150% of rated current for up to 30 seconds
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -20°C to +65°C
• Environmental Protection: IP20 (suitable for indoor use with protection against solid objects greater than 12 mm)
• Dimensions (W x H x D): 120 x 150 x 195 mm
• Weight: Approximately 1.8 kg
• Mounting Type: DIN rail or panel mountable
• Compliance: RoHS compliant
