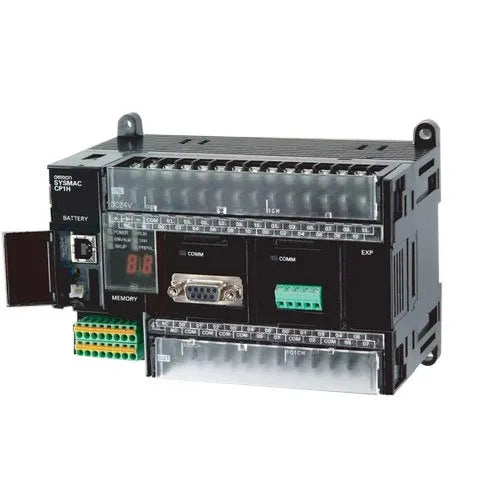

Omron Automation & Safety CP1H-X40DR-A Programmable Logic Controller I/O Module CP1HX40DRA

Description:

The Omron CP1H-X40DR-A Programmable Logic Controller is used in Omron CP1H automation systems for high-speed machine control and logic processing. Commonly installed in packaging machines, conveyor systems, assembly equipment, and precision automation lines. Maintenance teams and system integrators use this part for system control, replacement, retrofit, and advanced automation upgrades.

Applications:

The Omron CP1H-X40DR-A is utilized in industrial automation environments requiring fast processing and reliable control. It is widely applied in material handling systems, labeling machines, inspection equipment, and manufacturing processes where precise sequencing and control are essential for efficient operation.

Technical Specifications:

• Manufacturer Part Number (MPN): CP1H-X40DR-A / CP1HX40DRA
• Product Type: Programmable Logic Controller (PLC), CPU Unit
• Series: Omron CP1H Series
• Total I/O Points: 40
• Digital Inputs: 24 (24 VDC)
• Digital Outputs: 16 relay outputs
• Output Type: Relay
• Input Voltage: 24 VDC
• Power Supply: 100 to 240 VAC
• Program Memory: 20K steps
• Data Memory: 32K words
• High-Speed Counters: Built-in high-speed inputs
• Pulse Outputs: Built-in pulse output for positioning
• Communication Ports: USB, optional serial/Ethernet (model dependent)
• Expansion Capability: Supports CP1 series expansion modules
• Mounting Type: DIN rail mounting
• Operating Temperature: 0°C to 55°C

Common Replacements:

• Omron CP1H-X40DR-D
• Omron CP1L-M40DR-A
• Omron CJ2M-CPU31
