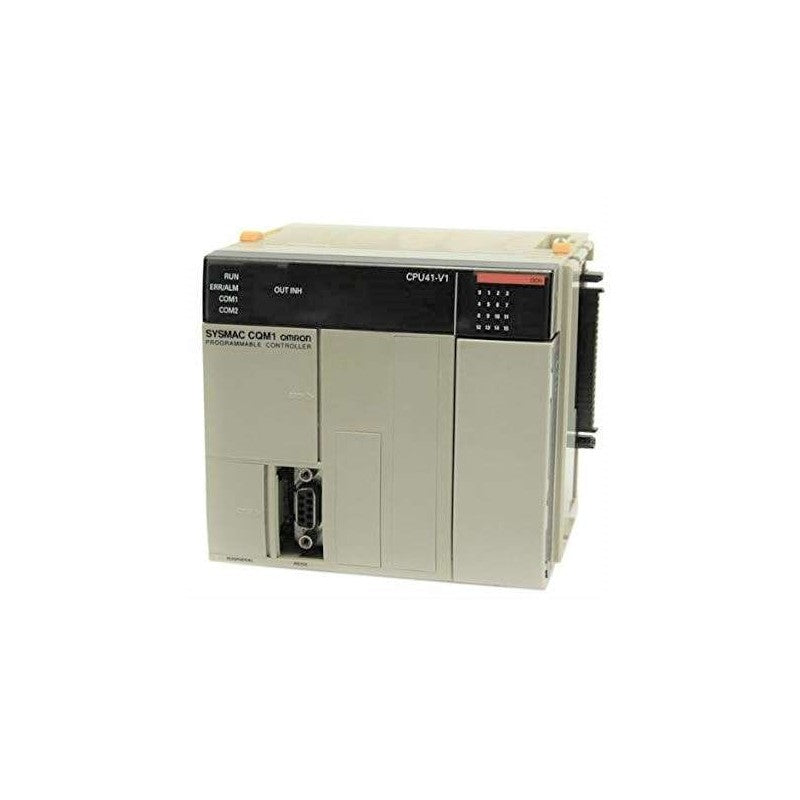

Omron AUTOMATION & SAFETY CQM1-CPU41-V1 CPU INPUT OUTPUT I/O POWER SUPPLY UNIT CQM1CPU41V1

Description:

CQM1CPU41V1 CPU POWER SUPPLY MODULE I/O 100-230 VAC 50/60 HZ 16 INPUTS RS-232C INTERFACE 6-7.2 K WORD DIN RAIL MOUNT The CQM1-CPU41-V1 is a high-performance programmable logic controller (PLC) from Omron, designed for sophisticated automation and control tasks. This model features a robust CPU with an integrated memory capacity for program storage and processing. With its versatile I/O expansion capabilities, it is suitable for complex industrial applications requiring advanced control and communication features. The CQM1-CPU41-V1 offers reliability and scalability, making it ideal for integrating into larger systems or standalone operations where precise control and monitoring are essential.

Technical Specifications:

• Model: CQM1-CPU41-V1
• Processor: 16-bit CPU
• I/O Points: Modular; expansion capability with various I/O units
• Program Capacity: 6,000 steps
• Memory: 8 KB RAM for user programs, 8 KB for data
• Communication Ports: 1 x RS-232C, 1 x RS-422/485 (optional)
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -20°C to 70°C
• Dimensions (W x H x D): 50 x 90 x 80 mm
• Weight: Approximately 200 g
• Power Supply: 24V DC (typical)
• Mounting Type: DIN rail or panel mount
