Omron Automation & Safety NB10W-TW01B HMI Human Machine Interface 10.1" TFT LED NB10WTW01B
Omron Automation & Safety NB10W-TW01B HMI Human Machine Interface 10.1" TFT LED NB10WTW01B
Couldn't load pickup availability





DESCRIPTION

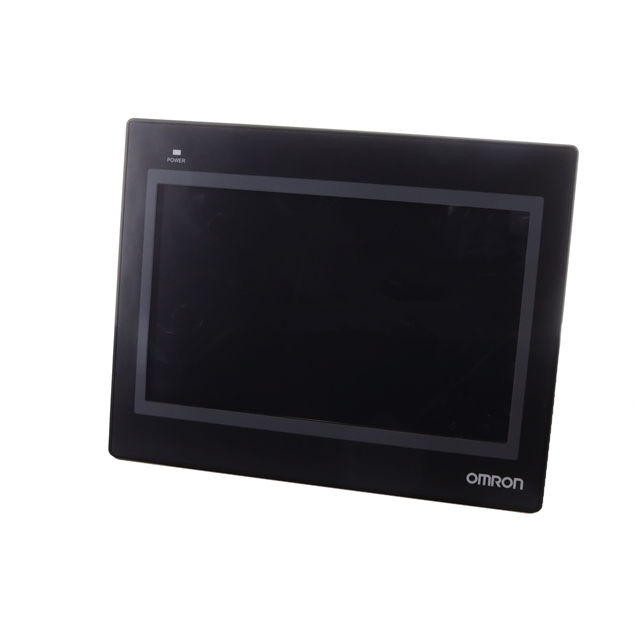

The Omron NB10W-TW01B is a 10.1-inch widescreen HMI (Human-Machine Interface) designed for use in industrial automation environments. Part of the NB Series, this unit features a high-resolution TFT LCD touch display, Ethernet, USB, and serial communication options for flexible connectivity. It allows intuitive control and monitoring of PLCs and other industrial devices through customizable graphical interfaces.
TECHNICAL SPECIFICATIONS
Model Number: NB10W-TW01B
Series: Omron NB Series
Display Size: 10.1 inches (widescreen)
Display Type: TFT LCD, color
Resolution: 800 x 480 pixels (WVGA)
Touchscreen: Analog resistive touch
Backlight: LED, user-replaceable
Backlight Life: Approx. 50,000 hours at 25°C
Interface Ports:
– 1 x Ethernet (10/100Base-T)
– 2 x Serial ports (RS-232C/RS-485)
– 1 x USB-A (host)
– 1 x USB-mini B (programming)
Memory: 128 MB Flash ROM
Power Supply: 24V DC (20.4 to 28.8V)
Power Consumption: 14.4 W max
Dimensions: 271.6 x 213.4 x 56 mm (W x H x D)
Panel Cutout: 260 x 202 mm
Weight: Approx. 1.2 kg
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Mounting: Panel mount
Certifications: CE, UL, cUL, KC
Programming Software: Omron NB-Designer
