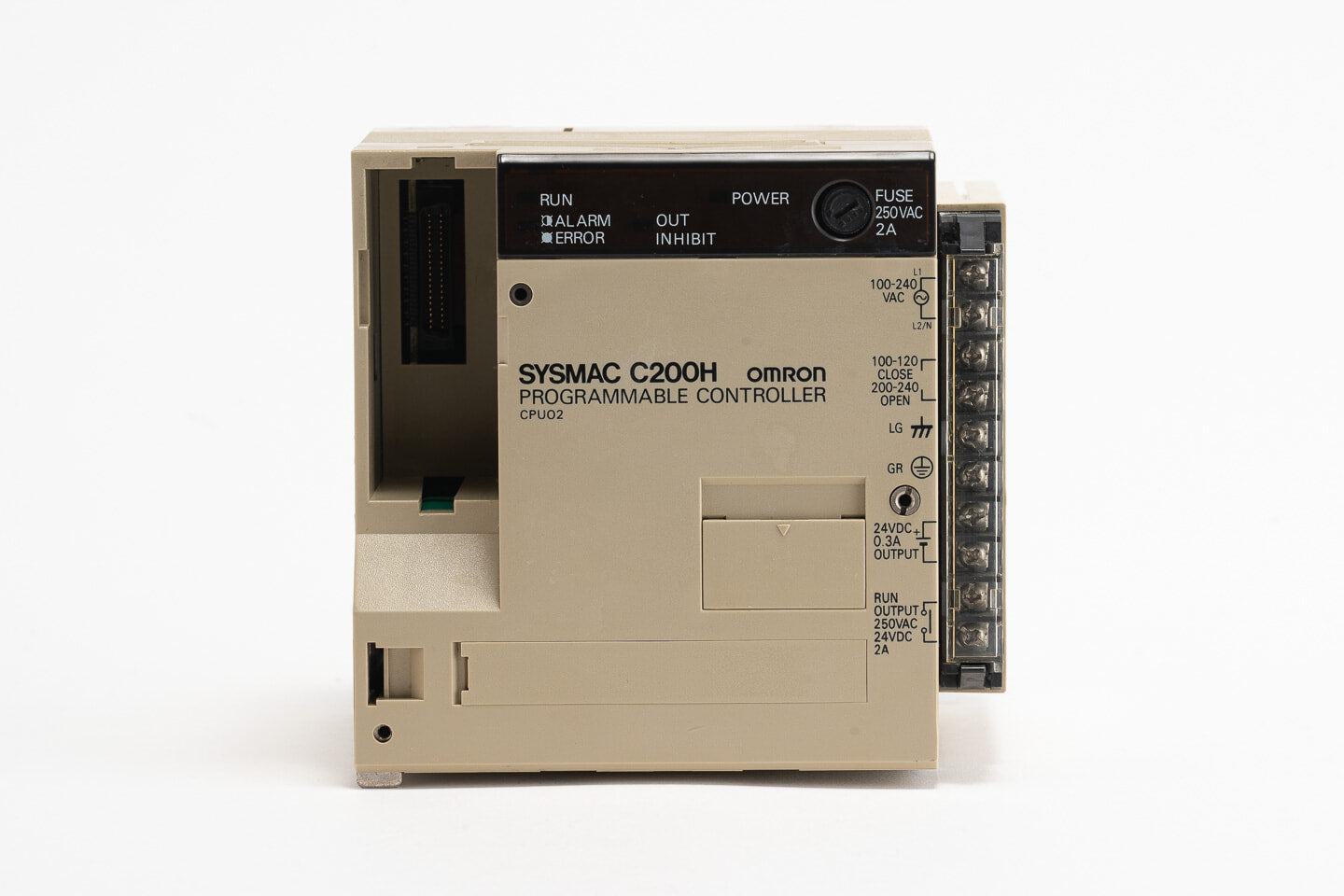

Omron C200H-CPU02 Programmable Controller CPU Module Unit C200HCPU02

Description:

C200HCPU02 SYSMAC C200 CPU MODULE 100/200-240 VAC 24 VDC OUTPUT The C200H-CPU02 is a compact and versatile programmable logic controller (PLC) central processing unit from Omron’s C200H series, designed to offer reliable control and automation for a variety of industrial applications. Featuring a built-in CPU with 8K steps of program memory and 4K words of data memory, this PLC provides robust processing power and flexibility. Its modular design allows for easy expansion with additional I/O and communication units, making it suitable for both simple and complex automation tasks. The C200H-CPU02 integrates seamlessly with Omron's C200H series components, ensuring efficient and scalable system design.

Technical Specifications:

• Model: C200H-CPU02
• Type: Programmable Logic Controller (PLC) CPU Unit
• Processor Type: 16-bit microprocessor
• Program Memory: 8K steps
• Data Memory: 4K words
• I/O Capacity: Supports up to 256 digital I/O points and 128 analog I/O points (with expansion units)
• Communication Ports:
• Built-in Serial Port: 1 (RS-232C)
• Expansion Port: 1 (for additional communication or special function units)
• Scan Time: Approx. 1 ms per 1,000 instructions (typical)
• Operating Voltage: 24V DC
• Current Consumption: 300 mA (typical)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Dimensions (W x H x D): 90 x 90 x 80 mm
• Weight: Approximately 350 g
• Mounting Type: DIN rail mountable
• Compliance: RoHS compliant
