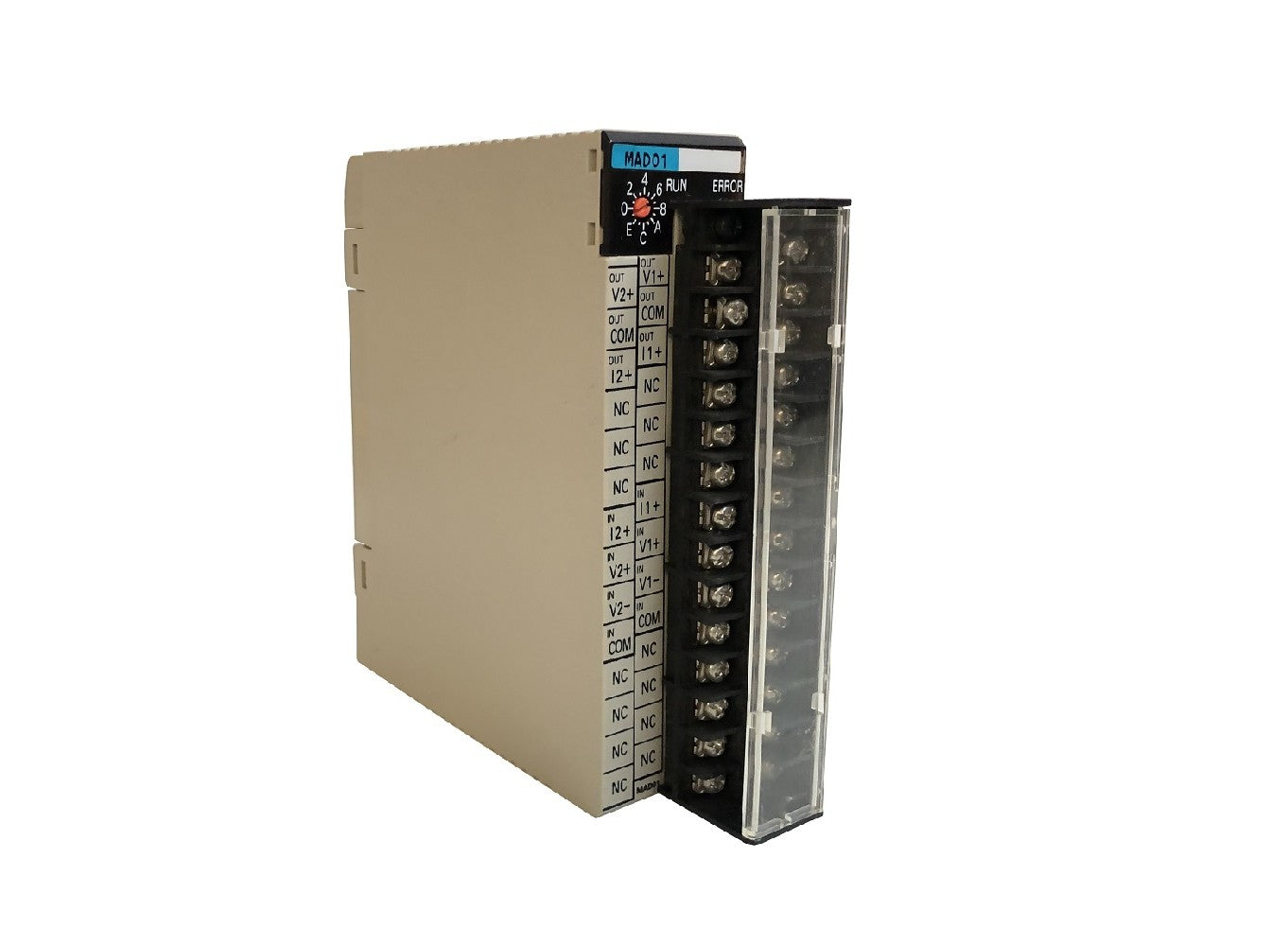

Omron C200H-MAD01 C200HMAD01 A/D D/A Unit C200HMAD01

Description:

The Omron C200H-MAD01 A/D D/A unit is used in C200H-series PLC systems to provide analog signal conversion for monitoring and controlling industrial processes. Commonly installed in process control panels, manufacturing lines, temperature control systems, and automation equipment requiring accurate analog input and output handling. Maintenance teams and system integrators use this part for replacement, retrofit, and maintaining precise analog signal processing in PLC-based systems.

Applications:

The Omron C200H-MAD01 analog I/O unit is used in industrial environments where accurate measurement and control of analog signals are essential. It is applied in temperature control, pressure monitoring, flow measurement, and process automation systems to convert real-world analog signals into PLC-readable data and provide control outputs for actuators, ensuring stable and efficient operation.

Technical Specifications:

• Manufacturer: Omron
• Part Number: C200H-MAD01
• Product Type: Analog Input/Output Unit (A/D and D/A)
• Series: Omron C200H Series
• Analog Inputs: 2 channels (voltage/current)
• Analog Outputs: 1 channel (voltage/current)
• Input Signal Range: 0–10 V, 4–20 mA (model dependent)
• Output Signal Range: 0–10 V, 4–20 mA (model dependent)
• Resolution: Approx. 12-bit conversion
• Conversion Speed: Standard analog conversion rate
• Connection Type: Screw terminal
• Mounting Type: Rack mount (C200H PLC rack)
• Isolation: Electrical isolation between channels and PLC
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron C200H-AD003 Analog Input Unit
• Omron C200H-DA003 Analog Output Unit
• Omron CJ1W-MAD42 Analog I/O Unit
