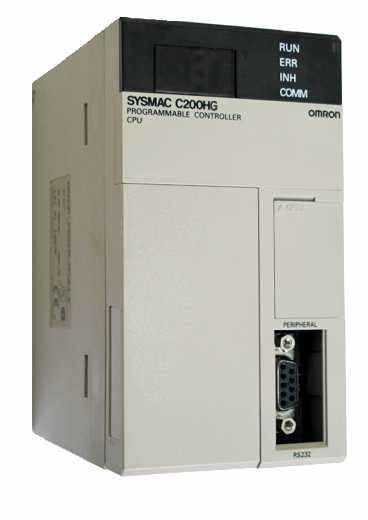

Omron C200HG-CPU43-E 16K CPU W/RS232 880 I/O PLC MODULE C200HGCPU43E

Description:

The Omron C200HG-CPU43-E is a high-capacity CPU unit from the C200H PLC series, designed for demanding industrial automation applications. It features robust processing capabilities and supports a large number of I/O points, making it ideal for complex control systems. The C200HG-CPU43-E provides advanced instruction sets, fast execution speeds, and flexible networking capabilities. With support for memory cassette backup and remote I/O, this CPU unit is suitable for a wide range of machine control, material handling, and manufacturing operations.

Technical Specifications:

CPU Type: C200HG Series High-Capacity CPU
Program Capacity: 11.2K words
Data Memory: 6K words (DM), 2K words (HR)
I/O Capacity: Up to 480 local I/O points, expandable to 1024 with remote I/O
Instruction Set: Ladder logic with over 300 instructions
Execution Speed: Approx. 0.1 µs per basic instruction
Ports: 1 x Peripheral (for programming), 1 x Host Link (RS-232C)
Expansion: Supports C200H I/O modules and memory cassettes
Power Supply: Supplied by separate power unit (not included)
Mounting Type: Rack-mounted (C200H backplane)
Backup: Battery backup and memory cassette options
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Dimensions: 35 mm x 130 mm x 100 mm (approx., W x H x D)
Weight: Approx. 350 g (12.3 oz)
