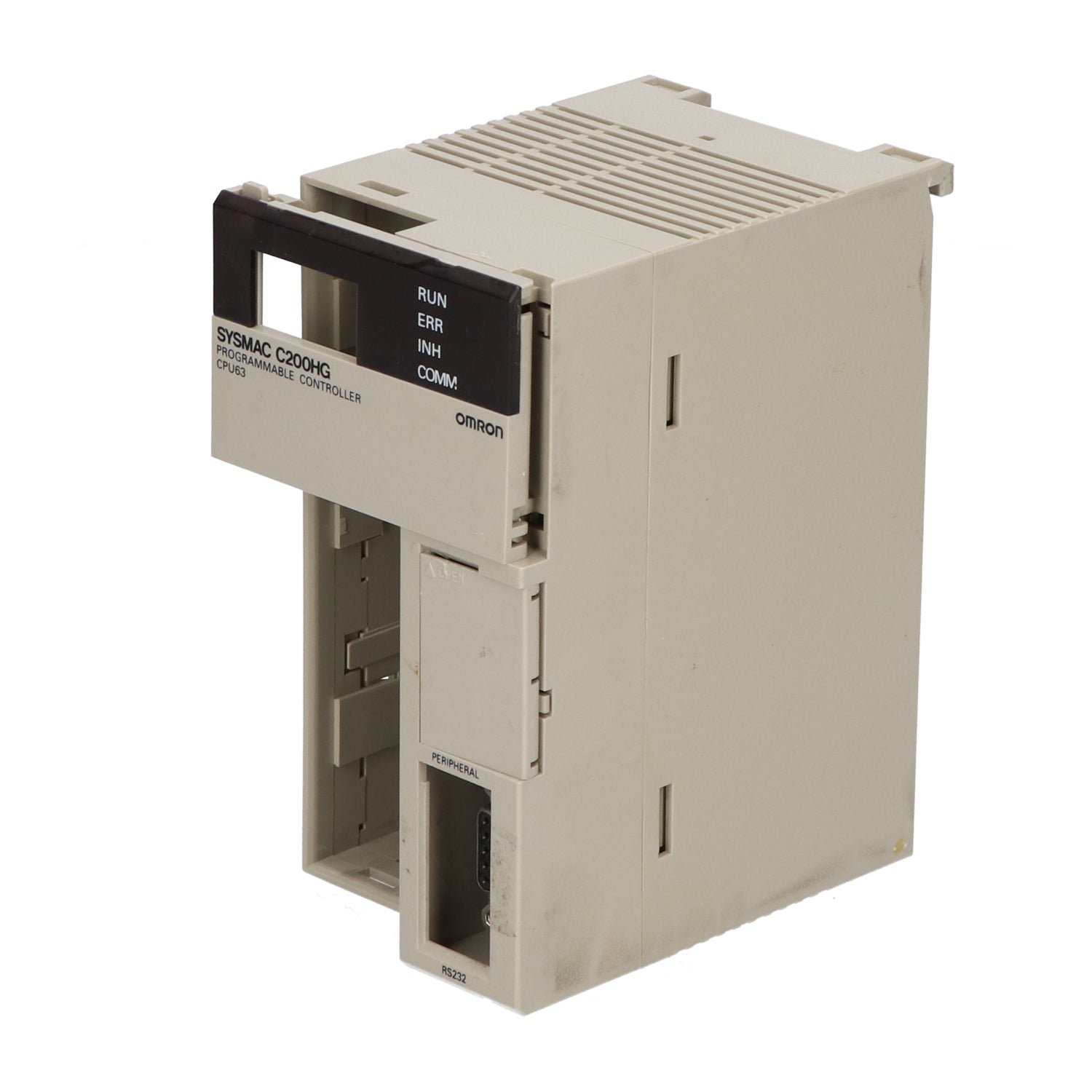

Omron C200HG-CPU63-E C200HGCPU63E CPU UNIT MODULE

Description:

C200HGCPU63E DISCONTINUED BY MANUFACTURER CPU PROGRAMMABLE MODULE SYSMAC C200 PROGRAM CAPACITY (WORDS): 15.2K 6K W/RS232 1184 I/O CONTROLLERS 16K CPU W/RS232 1184 I/O The C200HG-CPU63-E is a high-performance CPU unit from Omron’s C200H series, designed to offer advanced processing capabilities for complex automation tasks. With its powerful processor and extensive I/O support, this CPU unit ensures efficient control and operation of industrial systems. It features a robust design with enhanced memory capacity and high-speed processing, making it suitable for applications requiring rapid data handling and reliable performance. The C200HG-CPU63-E is well-suited for integration into large-scale automation systems where precise and dependable control is essential.

Technical Specifications:

• Model: C200HG-CPU63-E
• Type: Programmable Logic Controller (PLC) CPU Unit
• Processor Type: 16-bit microprocessor
• Memory:
• Program Memory: 8K steps
• Data Memory: 4K words
• I/O Capacity: Supports up to 256 digital I/O points and 128 analog I/O points (with expansion units)
• Communication Ports:
• Built-in Serial Port: 1 (RS-232C)
• Expansion Port: 1 (for additional communication or special function units)
• Scan Time: Approx. 0.6 ms per 1,000 instructions (typical)
• Operating Voltage: 24V DC
• Current Consumption: 500 mA (typical)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Dimensions (W x H x D): 160 x 120 x 90 mm
• Weight: Approximately 800 g
• Mounting Type: DIN rail mountable
• Compliance: RoHS compliant
