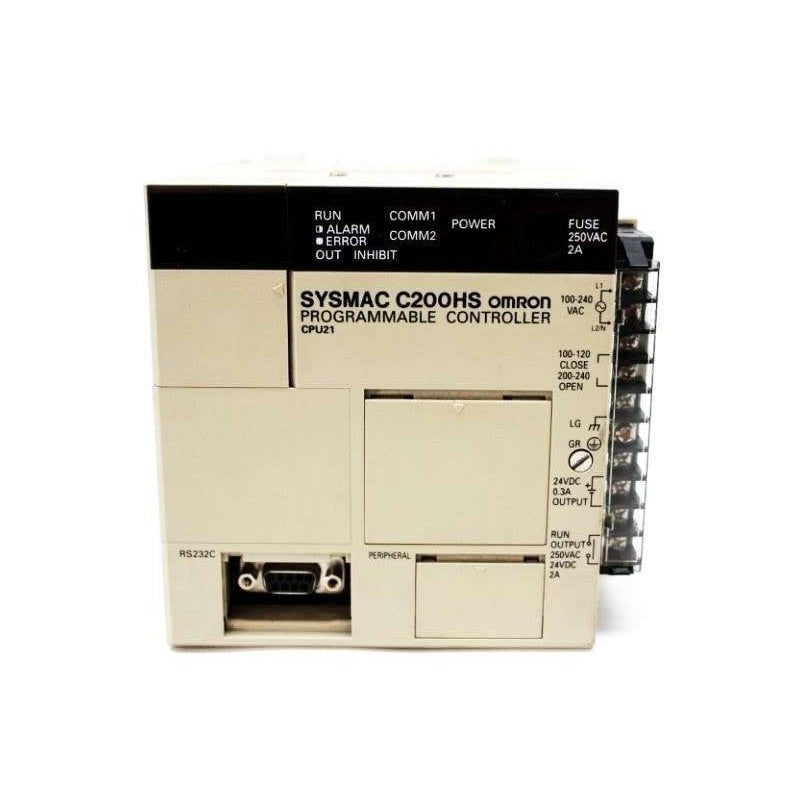

Omron C200HS-CPU21-E SYSMATIC CPU UNIT PLC MODULE C200HSCPU21E

Description:

The Omron C200HS-CPU21-E is a compact PLC CPU unit from the C200H series, offering integrated control capabilities for small to mid-size automation systems. It features built-in I/O points and supports memory cassette options for program storage. This unit includes advanced instructions for math, PID control, and data manipulation, making it suitable for general machine control, packaging, and manufacturing applications. It integrates easily with Omron expansion modules and operates on a 5V backplane.

TECHNICAL SPECIFICATIONS:

Model: C200HS-CPU21-E
Series: Omron C200H
CPU Type: Compact CPU with built-in I/O
Built-in I/O: 20 points (12 inputs, 8 outputs)
Program Capacity: 2K steps
Data Memory: 2K words
Instruction Set: Ladder logic, math, PID, and advanced control instructions
Cycle Time: Approx. 1 ms per 1000 steps
Communication Ports: RS-232C (built-in), optional peripheral port
Memory Backup: Battery-backed RAM, optional EEPROM cassette
Mounting: Rack-mounted on C200H backplane
Backplane Voltage: 5V DC
Power Consumption: Approx. 0.7A at 5V DC
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Storage Temperature: –20°C to 75°C (–4°F to 167°F)
Dimensions: 90 mm x 120 mm x 130 mm (W x H x D approx.)
Certifications: CE, UL, CSA
