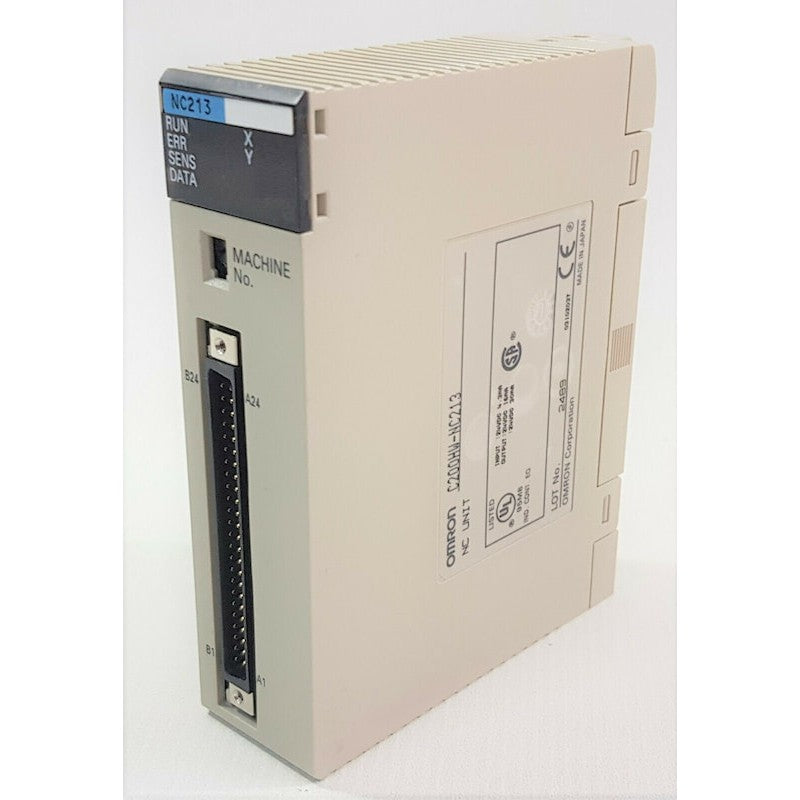

Omron C200HW-NC213 C200HWNC213

Description:

The Omron C200HW-NC213 motion control module is used in Omron C200H PLC systems to provide multi-axis positioning and pulse output control for industrial automation applications. Commonly installed in CNC machines, packaging equipment, robotics, and automated production lines requiring precise motion control. Maintenance teams and system integrators use this part for system expansion, replacement, and maintaining accurate positioning control in PLC-based systems.

Applications:

The Omron C200HW-NC213 motion control module is used in industrial environments for controlling servo motors and stepper motors in positioning, indexing, and synchronized motion tasks. It is widely applied in assembly machines, material handling systems, semiconductor equipment, and precision manufacturing processes where accurate motion control is critical.

Technical Specifications:

• Manufacturer Part Number (MPN): C200HW-NC213
• Product Type: PLC Motion Control Module (Position Control Unit)
• Series: C200H Series
• Number of Axes: 2-axis control
• Control Method: Pulse output (positioning control)
• Output Type: Pulse train outputs for servo/stepper drives
• Compatible PLC: Omron C200H series
• Positioning Functions: Linear interpolation, speed control, positioning
• Connection Type: Terminal block
• Mounting Type: PLC rack mount
• Power Supply: Supplied via PLC backplane
• Indicators: LED status indicators
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CJ1W-NC213
• Omron C200HW-NC113
• Omron CS1W-NC213
