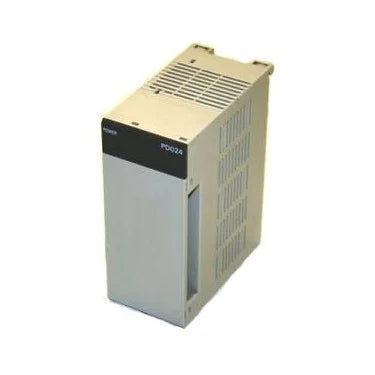

Omron C200HW-PD024 Power Supply Module C200HWPD024

Description:

The Omron C200HW-PD024 power supply module is used in Omron C200H PLC systems to provide stable DC power to the CPU and connected I/O modules. Commonly installed in industrial control panels, manufacturing systems, and process automation lines requiring reliable PLC operation. Maintenance teams and system integrators use this part for replacement, retrofit, and ensuring consistent power delivery in PLC-based systems.

Applications:

The Omron C200HW-PD024 power supply module is used in industrial environments to supply regulated power to PLC racks and automation systems. It is widely applied in factory automation, material handling systems, and production lines where stable power is essential for continuous and reliable control system operation.

Technical Specifications:

• Manufacturer Part Number (MPN): C200HW-PD024
• Product Type: PLC Power Supply Module
• Series: C200H Series
• Input Voltage: 100 to 240 VAC
• Output Voltage: 24 VDC
• Output Current: Approx. 2.5 A (model dependent)
• Mounting Type: PLC rack mount
• Compatibility: Omron C200H series PLC systems
• Protection Features: Overvoltage, overcurrent, short circuit protection
• Indicators: LED power status indicator
• Cooling Method: Natural air cooling
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron C200HW-PA204
• Omron CS1W-PA202
• Omron CJ1W-PA202
