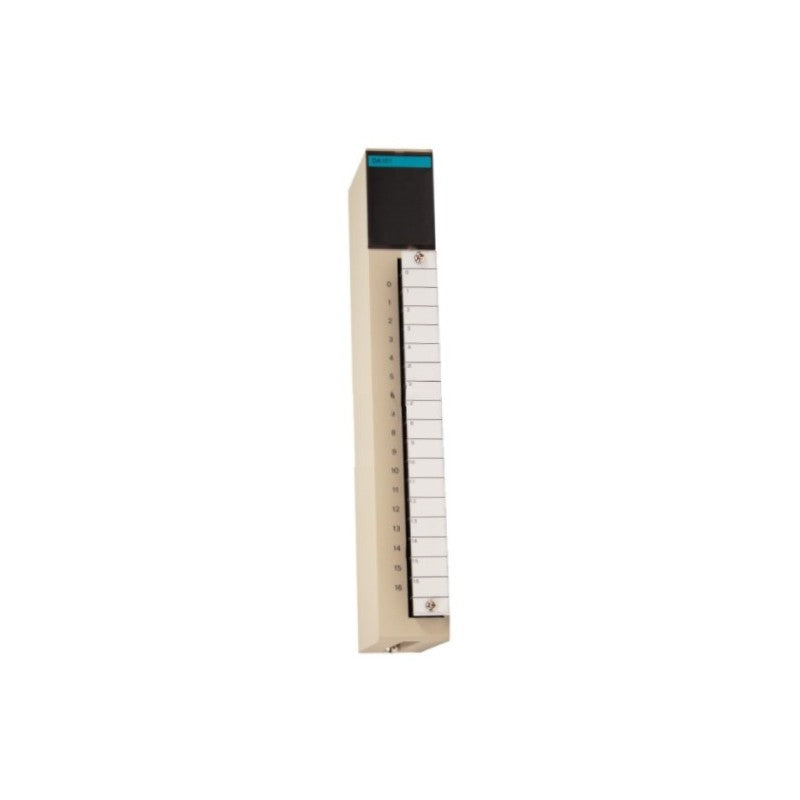

Omron C500-DA101 ANALOG OUTPUT UNIT SAFETY RELAY C500 PLC MODULE C500DA101

Description:

The Omron C500-DA101 Analog Output Unit is a PLC I/O module used in Omron C500 automation systems. Commonly installed in control racks to convert digital signals into analog outputs for controlling field devices such as valves, drives, and actuators. Maintenance teams, OEMs, and system integrators use this module for replacement, retrofit, and precise analog signal control in industrial processes.

Applications:

The Omron C500-DA101 Analog Output Unit is used in industrial automation systems requiring accurate analog output control, including process control, manufacturing systems, chemical plants, and temperature or flow regulation. It is ideal for applications that demand stable voltage or current outputs, reliable signal conversion, and seamless integration with Omron C500 PLC platforms.

Technical Specifications:

• Brand: Omron
• Part Number: C500-DA101
• Product Type: Analog Output Module (D/A Unit)
• Series: C500
• Number of Outputs: 4 analog outputs
• Output Signal Types: 1–5 V, 0–10 V, 4–20 mA
• Mounting Type: Backplane (rack-mounted)
• Terminal Type: Screw terminal
• Operating Temperature: 0°C to 55°C
• Protection Rating: IP30
• Weight: Approx. 0.65 kg
• Compatibility: Omron C500 / CV series PLC systems
• Lifecycle Status: Obsolete / discontinued
• Application: Analog signal output for process and machine control

Common Replacements:

• Omron C500-DA102
• Omron CS1W-DA041
• Omron CJ1W-DA041
