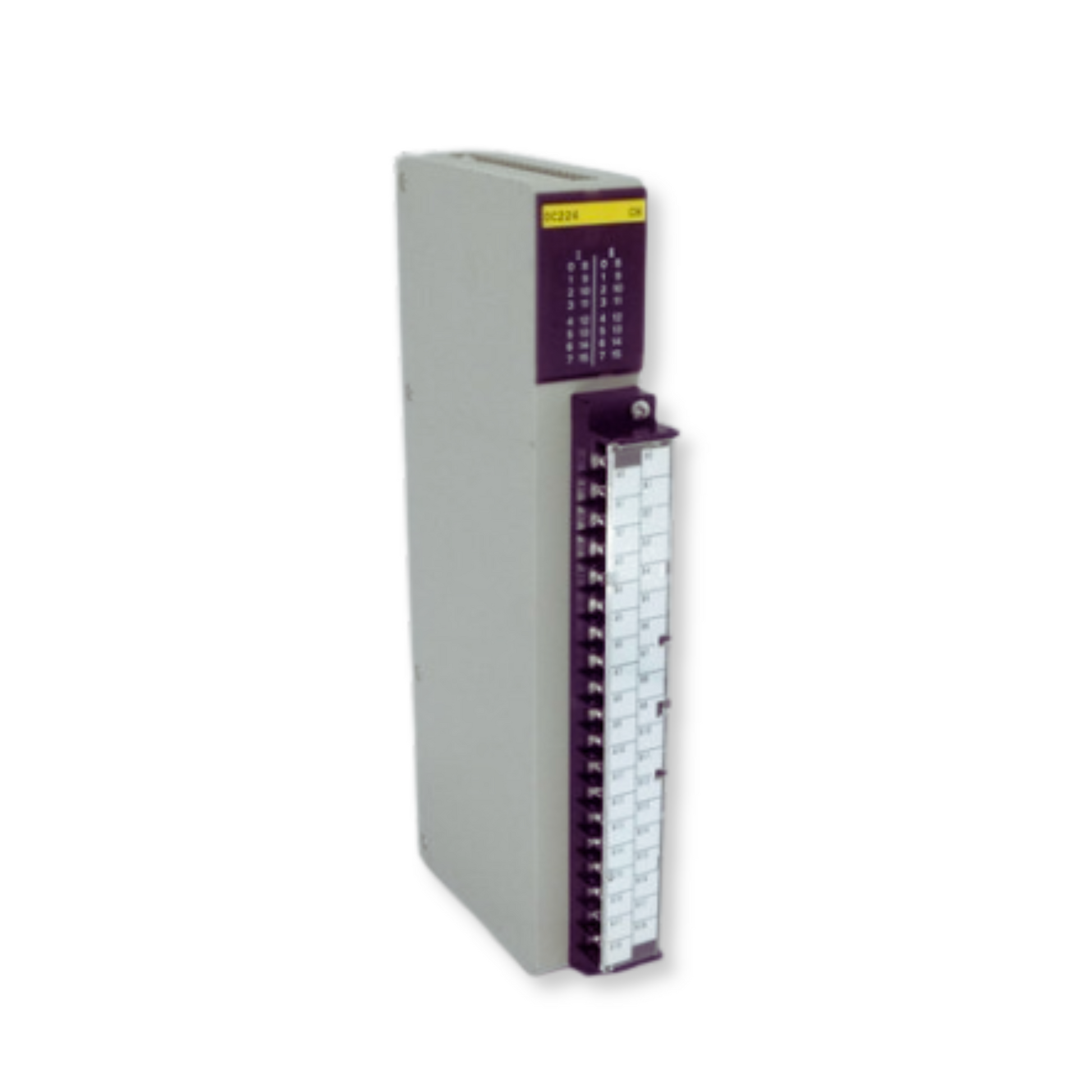

Omron C500-OC224 3G2A5-OC224 C500OC224

Description:

C500OC224 DISCONTINUED BY MANUFACTURER PROGRAMMABLE CONTROLLER SYSMAC C500 PANEL MOUNT OUTPUT MODULE 32 POINT RELAY 2 AMP The Omron C500-OC224 is a high-performance output module designed for use with the Omron C500 series programmable controllers. This module provides 24 relay outputs, making it suitable for applications requiring multiple relay-controlled outputs for switching and automation tasks. Each relay output can handle significant loads, offering flexibility for various industrial control systems. The C500-OC224 is engineered for reliable performance and durability, ensuring it can handle demanding operational conditions in automation and control environments.

Technical Specifications:

• Model Number: C500-OC224
• Type: Relay Output Module
• Compatibility: Omron C500 Series Programmable Controllers
• Number of Outputs: 24 Relay Outputs
• Output Type: Relay
• Output Rating:
• Rated Load: 2A at 250V AC / 2A at 30V DC
• Maximum Switching Power: 500 VA (AC) / 60W (DC)
• Contact Configuration: SPDT (Single Pole Double Throw)
• Response Time: Typically 10ms (ON) / 10ms (OFF)
• Insulation Resistance: 1000 MΩ at 500V DC
• Dielectric Strength: 2000V AC for 1 minute
• Mounting Type: Mounts directly onto the C500 controller backplane
• Connector Type: Screw terminals for wiring
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -20°C to 70°C
• Features: Reliable switching, durable construction, suitable for high-load applications
