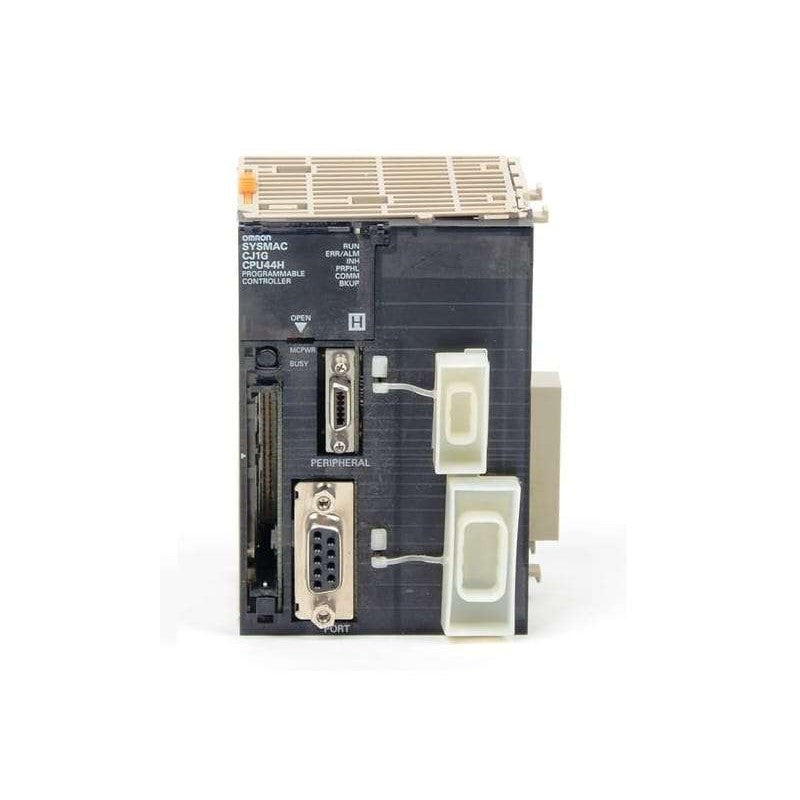

Omron CJ1G-CPU44H CJ1GCPU44H PLC MODULE CPU UNIT

Description:

CJ1GCPU44H DISCONTINUED BY MANUFACTURER CPU MODULE 30K STEPS 64K WORDS MEMORY SYSMAC PROGRAMMABLE CONTROLLER The CJ1G-CPU44H is a high-performance PLC designed to deliver reliable and efficient control in complex industrial environments. It features a 32-bit CPU that provides fast processing speeds and high-resolution analog I/O capabilities, making it suitable for tasks that require precise control and rapid decision-making. With extensive memory for program and data storage, the CJ1G-CPU44H supports sophisticated control strategies and complex programming needs. It also offers a range of communication options, including support for various expansion modules and communication networks, ensuring flexibility in system design and integration.

Technical Specifications:

• Model: CJ1G-CPU44H
• CPU Type: 32-bit RISC processor
• Processing Speed:
• Instruction Execution Time: 0.12 µs per instruction (typical)
• Memory:
• Program Memory: 64KB (expandable)
• Data Memory: 16KB (expandable)
• I/O Capacity:
• Built-in I/O: 24 digital inputs, 16 digital outputs
• Expandable I/O: Supports up to 256 digital inputs and 256 digital outputs
• Analog I/O: Supports up to 32 points of analog input and output
• Communication Ports:
• Serial Ports: 1 RS-232C and 1 RS-422/485
• Ethernet: Built-in Ethernet port for network communication (optional communication expansion modules available)
• Power Supply:
• Operating Voltage: 24V DC ±10%
• Power Consumption: Approximately 30W
• Operating Temperature Range: 0°C to +55°C
• Mounting Type: DIN rail mount
• Dimensions: 140 mm x 90 mm x 90 mm (W x H x D)
• Weight: Approximately 1.2 kg
