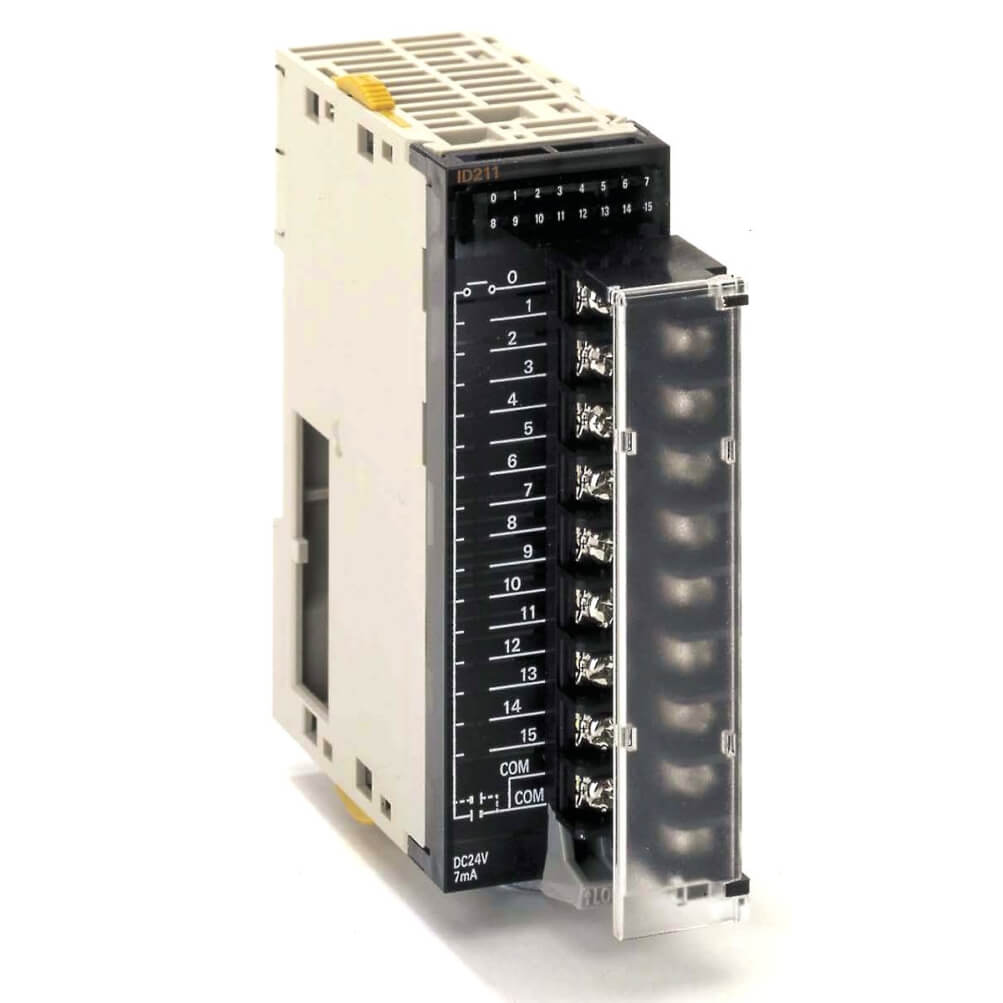

Omron CJ1W-ID211 CJ1WID211 PLC Input CJ1 Unit Controllers DC24V CJ1WID211

Description:

The Omron CJ1W-ID211 is a compact 16-point DC input module designed for the CJ-series PLC platform. It supports both sinking and sourcing input devices and is ideal for industrial automation applications requiring fast, reliable signal acquisition. With a 24VDC input voltage and LED status indicators for each channel, it ensures efficient diagnostics and easy installation. The CJ1W-ID211 is commonly used in manufacturing, packaging, and machine control systems.

TECHNICAL SPECIFICATIONS
Input Points: 16
Input Type: DC, sink/source
Rated Input Voltage: 24 VDC
Input Voltage Range: 15–30 VDC
Input Current: 7 mA (at 24 VDC)
ON Voltage/Current: 15 VDC min. / 3 mA min.
OFF Voltage/Current: 5 VDC max. / 1 mA max.
Response Time: OFF → ON: 1.0 ms; ON → OFF: 1.0 ms
Connector Type: MIL connector
Isolation: Photocoupler isolation
Power Consumption: 0.8 W max.
Mounting: DIN Rail (via base unit)
Weight: Approx. 150g
Compatible PLC Series: Omron CJ-series
