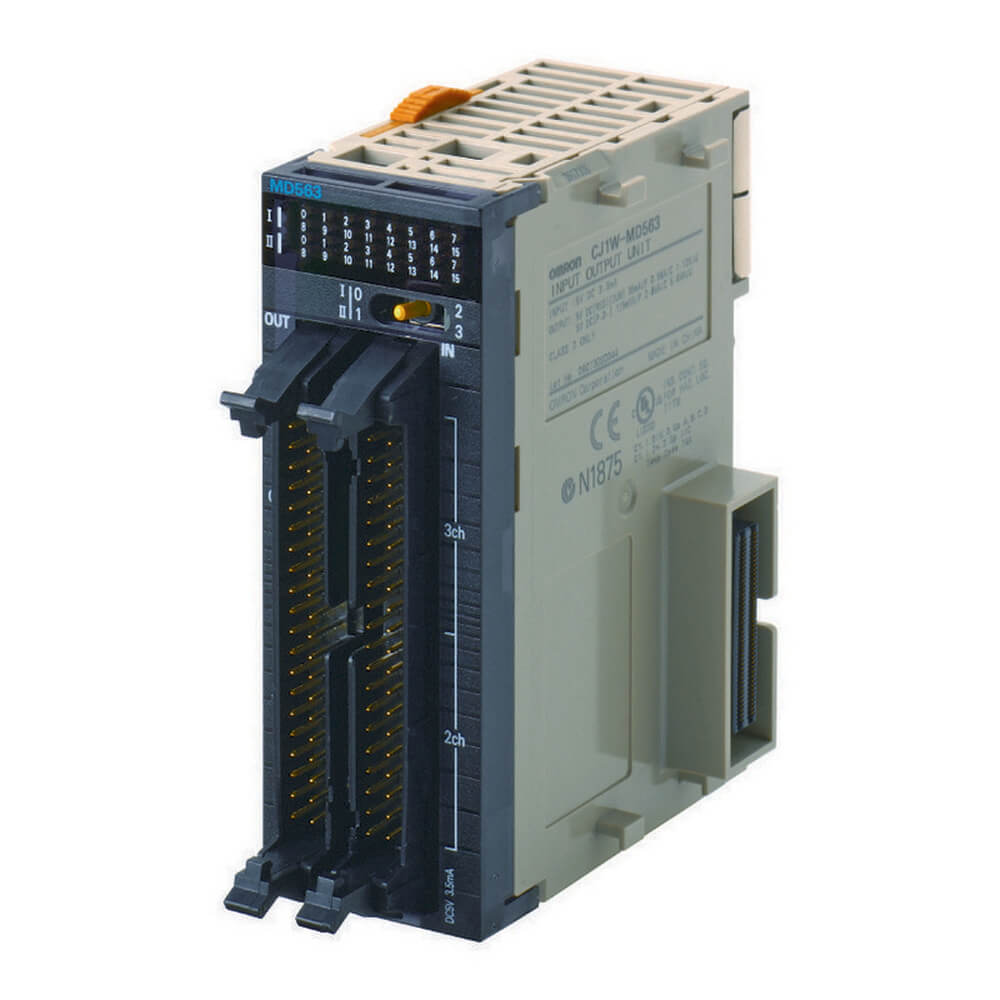

Omron CJ1W-MD263 PLC Mix I/O 32 IN 32 OUT 24DC MIL Term Block CJ1WMD263

Description:

The Omron CJ1W-MD263 mixed I/O module is used in Omron CJ-series PLC systems to provide combined digital input and output functionality for industrial automation applications. Commonly installed in control panels, manufacturing systems, conveyor lines, and packaging equipment requiring high-density I/O integration. Maintenance teams and system integrators use this part for system expansion, replacement, and maintaining efficient signal interfacing in PLC-based systems.

Applications:

The Omron CJ1W-MD263 mixed I/O module is used in industrial environments for interfacing sensors, switches, relays, and actuators within a single module. It is widely applied in factory automation, material handling systems, assembly lines, and production equipment where space-saving and flexible I/O configurations are essential.

Technical Specifications:

• Manufacturer Part Number (MPN): CJ1W-MD263
• Product Type: PLC Mixed I/O Module (Digital Input/Output Unit)
• Series: CJ1W Series
• Compatible PLC: Omron CJ1 Series
• Input Points: 32 inputs
• Output Points: 32 outputs
• Input Type: 24 VDC digital inputs
• Output Type: Transistor outputs (NPN)
• Connection Type: MIL connector terminal block
• Mounting Type: PLC rack mount
• Power Supply: Supplied via PLC backplane
• Isolation: Photocoupler isolation
• Indicators: LED status indicators for each I/O point
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CJ1W-MD261
• Omron CJ1W-MD563
• Omron CJ1W-ID261 + CJ1W-OD263
