Omron CJ1W-NC413 Position Control Module Unit CJ1WNC413 5~24VDC Input

DESCRIPTION

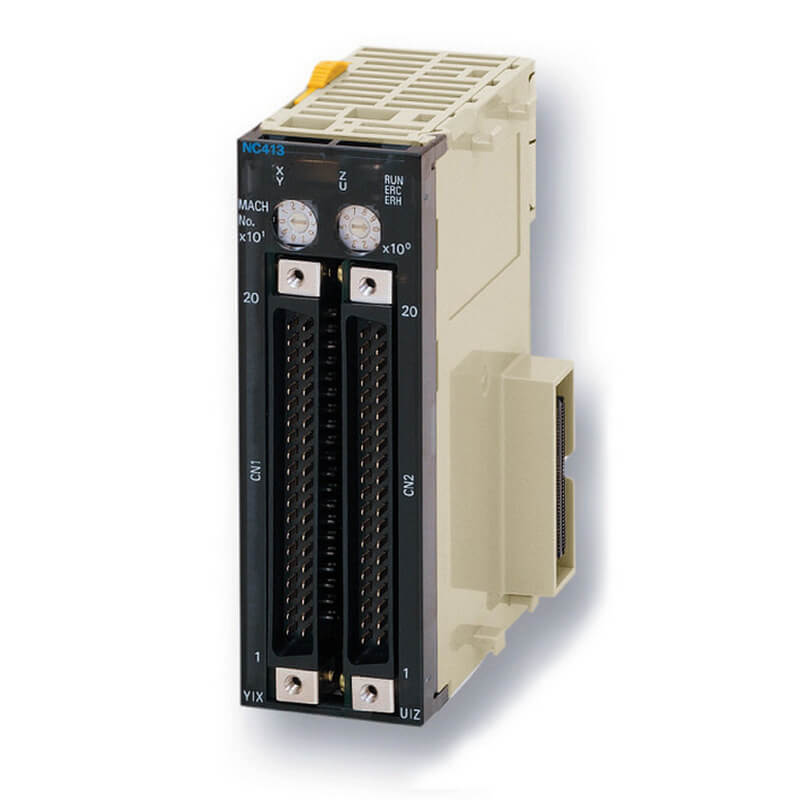

The Omron CJ1W-NC413 is a 4-axis position control unit designed for use with Omron CJ-series PLCs. It provides high-speed pulse output control for servo or stepper motors via open-loop pulse train signals. With advanced motion capabilities like linear and circular interpolation, origin searches, and speed/position control, the NC413 is ideal for precise multi-axis motion applications such as packaging, robotics, and automated assembly.

TECHNICAL SPECIFICATIONS
Model: CJ1W-NC413
Type: Position Control Unit
Number of Axes: 4
Control Method: Open-loop pulse output (CW/CCW or pulse/direction)
Output Type: Line driver (differential)
Maximum Pulse Output: 500 kpps per axis
Compatible Motors: Servos and steppers with pulse input drivers
Functions:
– Linear and circular interpolation
– Origin search
– Speed and position control
– Acceleration/deceleration ramps
Interface: Connects directly to CJ-series PLC CPU backplane
Power Supply: Supplied by PLC backplane
Programming: Uses Omron’s CX-Position software
Mounting: DIN rail (installed in PLC rack next to CPU)
Indicators: LED status for axis activity and errors
Certifications: CE, cULus
