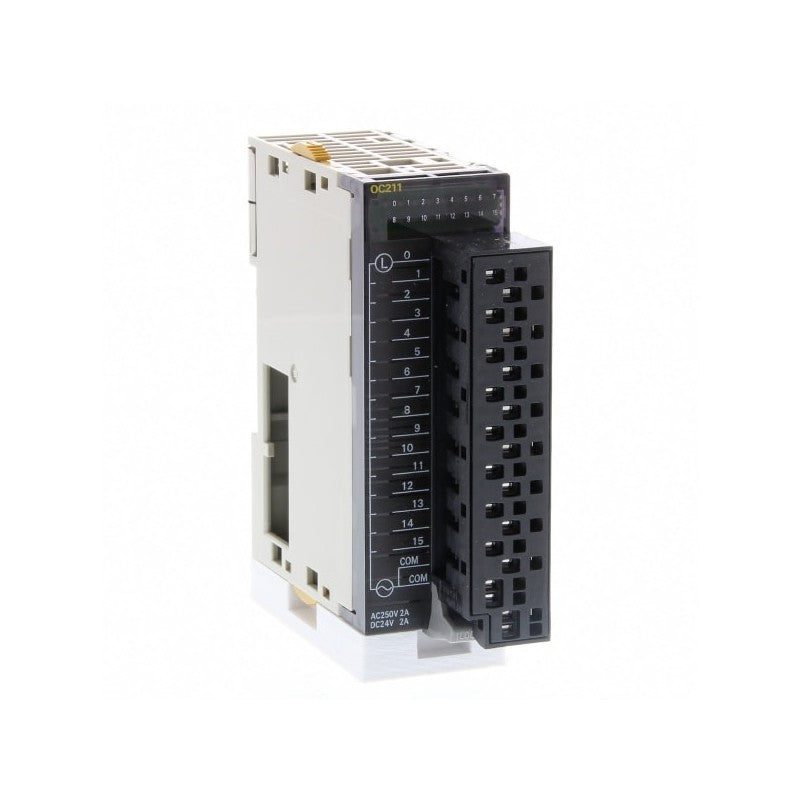

Omron CJ1W-OC211 LC Output Unit CJ1WOC211

Description:

The Omron CJ1W-OC211 transistor output unit is used in Omron CJ-series PLC systems to provide high-speed digital output control for industrial automation applications. Commonly installed in control panels, packaging machines, conveyor systems, and automated production lines requiring reliable output switching. Maintenance teams and system integrators use this part for system expansion, replacement, and enhancing output control capabilities in PLC-based systems.

Applications:

The Omron CJ1W-OC211 output unit is used in industrial environments for controlling actuators, relays, solenoids, and other field devices. It is widely applied in manufacturing systems, material handling equipment, assembly lines, and process automation where precise and fast digital output control is required.

Technical Specifications:

• Manufacturer Part Number (MPN): CJ1W-OC211
• Product Type: PLC Output Unit (Transistor Output)
• Series: CJ1W Series
• Compatible PLC: Omron CJ1 Series
• Output Points: 16 outputs
• Output Type: Transistor (NPN open collector)
• Rated Voltage: 5 to 24 VDC
• Rated Current: Approx. 0.3 A per point
• Response Time: High-speed switching
• Connection Type: Screw terminal
• Mounting Type: PLC rack mount
• Isolation: Photocoupler isolation
• Power Supply: Supplied via PLC backplane
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CJ1W-OD211
• Omron CJ1W-OC201
• Omron CJ1W-OC202
