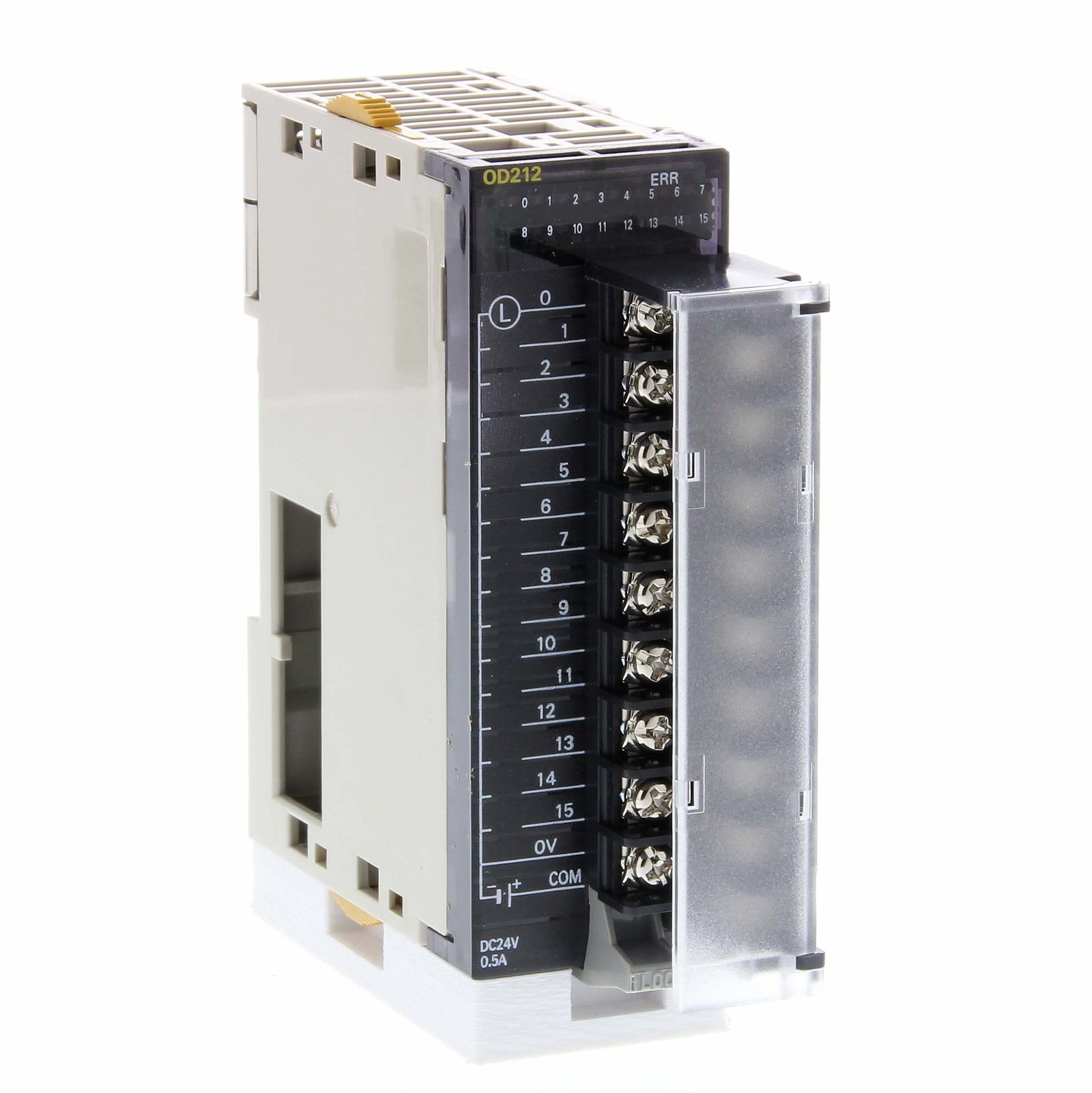

Omron CJ1W-OD212 TRANSISTOR OUTPUT UNIT I/O PLC MODULE CJ1WOD212

DESCRIPTION
The Omron CJ1W-OD212 is a 16-point digital output module designed for use with the CJ-series PLCs. This unit features relay outputs capable of switching both AC and DC loads, providing electrical isolation between the control system and field devices. Each output channel is equipped to handle a wide range of devices such as solenoids, contactors, and indicator lights, making it ideal for general-purpose automation systems. The module integrates easily into the CJ1 rack system and supports standard Omron programming environments.

TECHNICAL SPECIFICATIONS
Manufacturer: Omron
Model: CJ1W-OD212
Output Type: Relay (electromechanical)
Number of Outputs: 16 points
Rated Load Voltage: 12 to 24 VDC / 250 VAC (max)
Rated Load Current: 2 A per point (max), 8 A per common
Output Delay Time: 10 ms (ON/OFF)
Isolation: Relay isolation between output and internal circuit
Power Supply: Supplied through PLC backplane
Mounting: DIN rail or panel mount (via CJ1 base)
Module Width: 31 mm
Operating Temperature: 0 to 55°C
Indicators: LED for each output point
Terminal Type: Removable screw terminals
