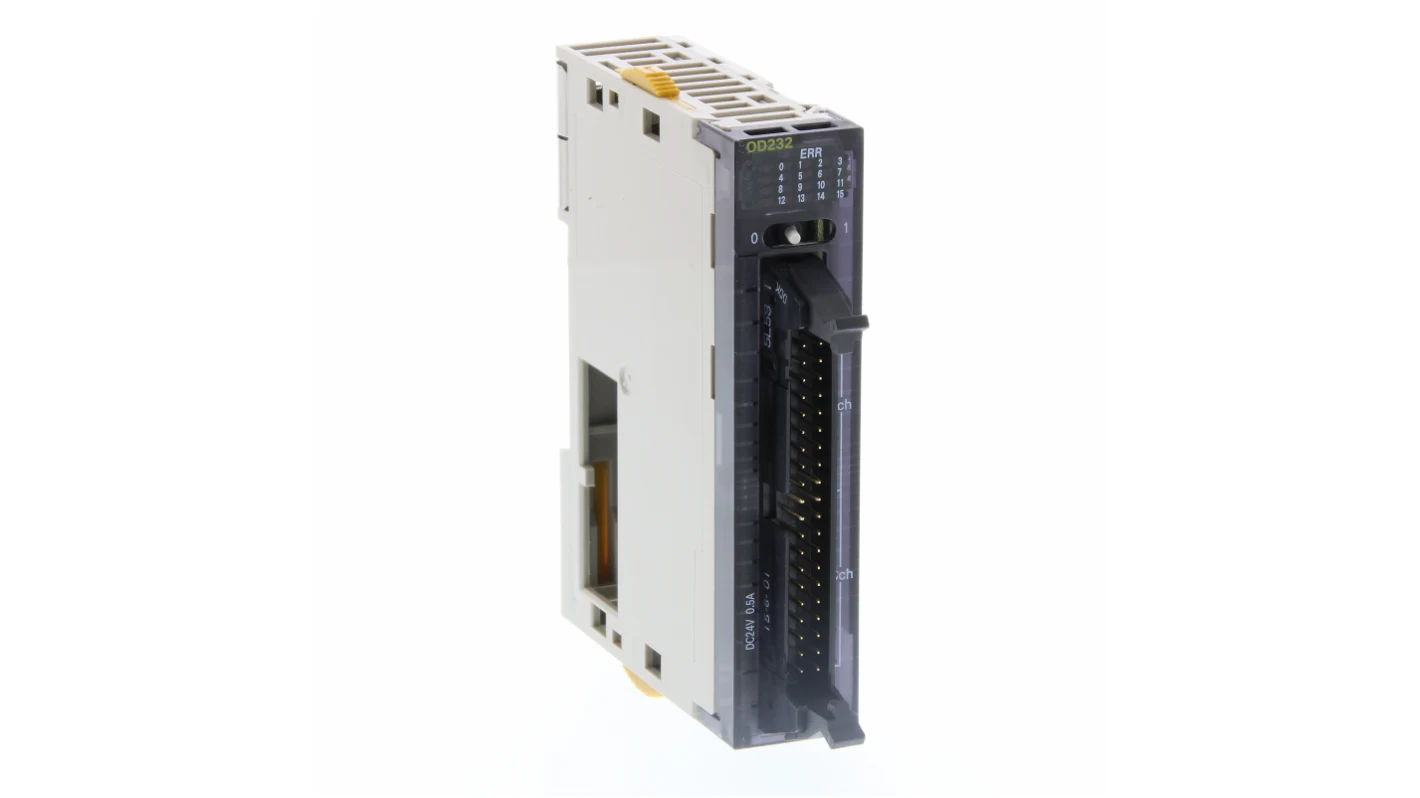

Omron CJ1W-OD232 INPUT OUTPUT UNIT PLC MODULE CJ1WOD232

DESCRIPTION
The Omron CJ1W-OD232 is a 16-point transistor output module designed for use with Omron's CJ1 and CJ2 series programmable logic controllers (PLCs). It features NPN (sinking) outputs and is ideal for high-speed switching applications in factory automation and process control environments. With isolated output points and a compact design, this module is well-suited for controlling solenoids, lamps, and relays.

TECHNICAL SPECIFICATIONS
Model Number: CJ1W-OD232
Type: Output Module
Output Type: Transistor (NPN – sinking)
Number of Outputs: 16
Rated Output Voltage: 12 to 24 VDC
Rated Output Current: 0.5 A per point, 2.4 A per common
Isolation: Photocoupler isolation between output terminals and internal circuits
ON Voltage Drop: 1.0 V max
OFF Leakage Current: 0.1 mA max
Response Time: ON = 0.5 µs max, OFF = 0.5 µs max
Terminal Type: MIL Connector (40-pin)
Current Consumption: 90 mA at 5 VDC
Dimensions: 31 x 89.4 x 65.5 mm (W x H x D)
Weight: Approx. 150 g
Manufacturer: Omron Corporation
Series: CJ1/CJ2
