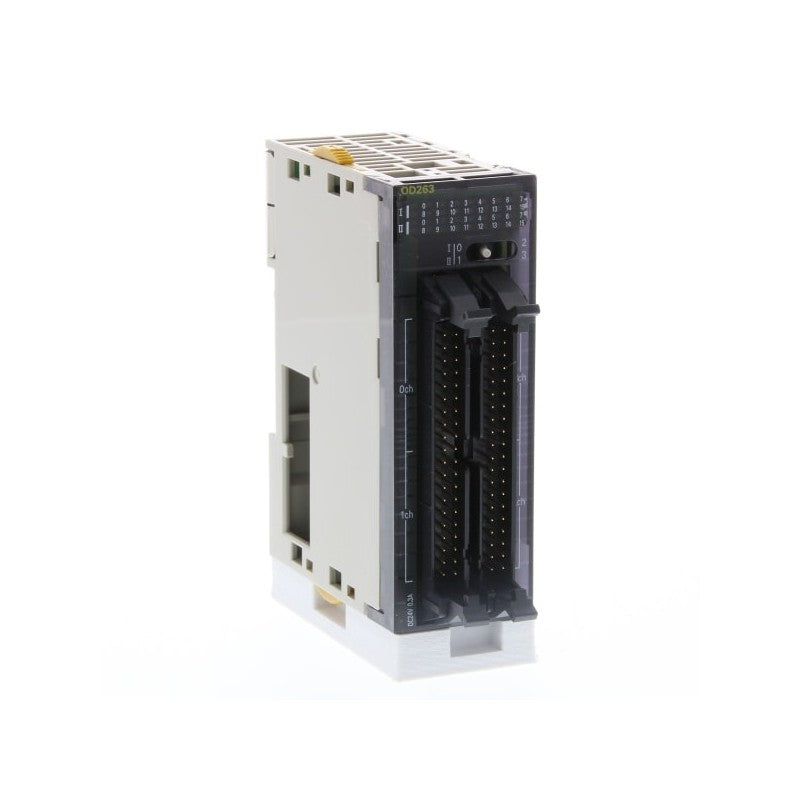

Omron CJ1W-OD263 OUTPUT MODULE CJ1WOD263

Description:

The Omron CJ1W-OD263 digital output module is used in CJ1-series PLC systems to provide reliable transistor-based output control for industrial automation equipment. Commonly installed in control panels, conveyor systems, packaging machines, and assembly lines requiring fast and accurate switching of output devices. Maintenance teams and system integrators use this part for replacement, system expansion, and maintaining efficient output control in PLC-based automation systems.

Applications:

The Omron CJ1W-OD263 output module is used in industrial environments where high-speed and reliable output control is required. It is applied in manufacturing lines, material handling systems, packaging equipment, and process automation panels to drive relays, solenoids, and actuators, ensuring precise and responsive PLC-controlled operations.

Technical Specifications:

• Manufacturer: Omron
• Part Number: CJ1W-OD263
• Product Type: Digital Output Module
• Series: Omron CJ1 Series
• Output Type: Transistor output (sinking)
• Number of Outputs: 32 outputs
• Rated Output Voltage: 24 VDC
• Maximum Output Current: Approx. 0.3 to 0.5 A per point (model dependent)
• Common Type: Shared common configuration
• Connection Type: Screw terminal
• Mounting Type: Rack mount (CJ1 PLC rack)
• Response Time: High-speed switching capability
• Isolation: Optical isolation between output and PLC
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CJ1W-OD233 Digital Output Module
• Omron CJ1W-OD211 Digital Output Module
• Omron CS1W-OD261 Digital Output Module
