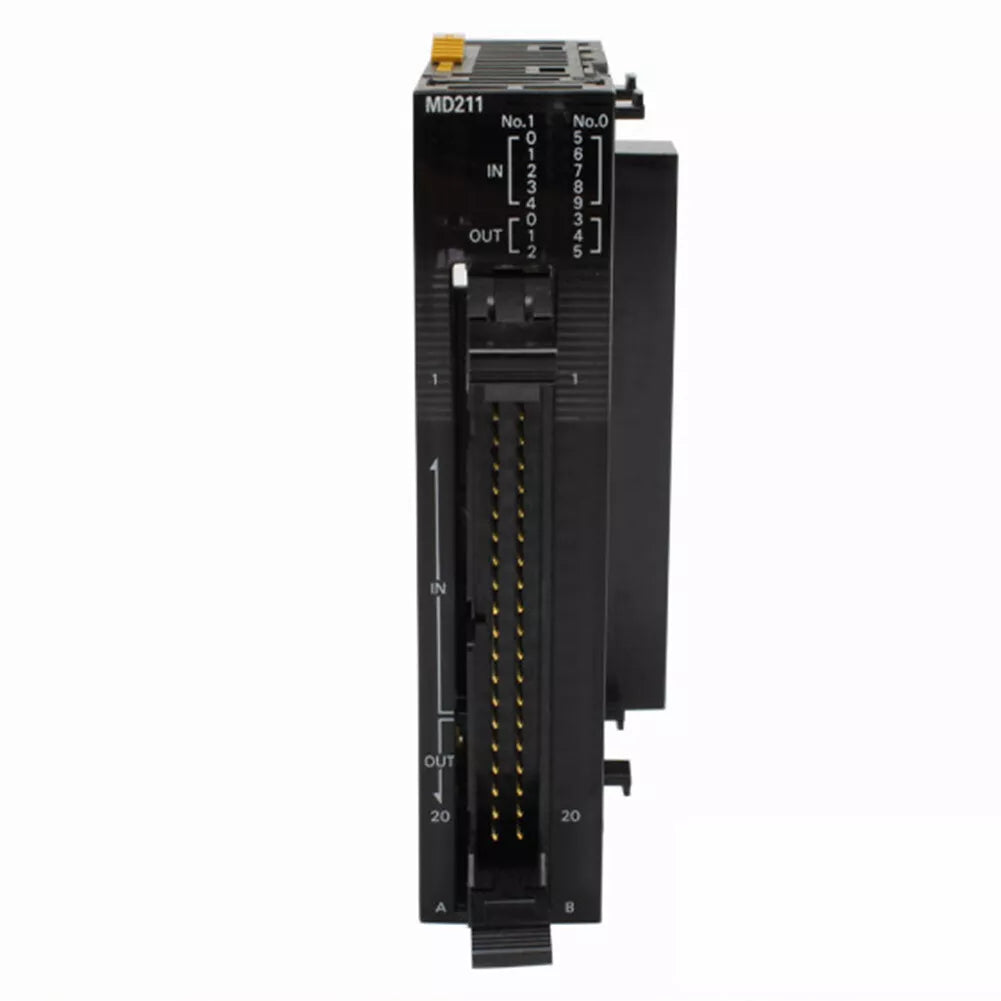

Omron CJ2M-MD211 CJ2MMD211 PULSE INPUT OUTPUT UNIT PLC MODULE CJ2MMD211

Description:

The Omron CJ2M-MD211 pulse input/output unit is used in CJ2M-series PLC systems for high-speed signal processing and control of pulse-based devices in industrial automation applications. Commonly installed in motion control systems, conveyor lines, packaging machines, and automated equipment requiring precise pulse input and output handling. Maintenance teams and system integrators use this part for replacement, system expansion, and maintaining accurate high-speed control in PLC-based automation systems.

Applications:

The Omron CJ2M-MD211 pulse I/O unit is used in industrial environments where high-speed signal processing and precise control are required. It is applied in stepper motor control, encoder signal processing, conveyor synchronization, and automated machinery to manage pulse inputs and outputs efficiently, ensuring accurate motion and timing control within PLC systems.

Technical Specifications:

• Manufacturer: Omron
• Part Number: CJ2M-MD211
• Product Type: Pulse Input/Output Unit
• Series: Omron CJ2M Series
• Input Type: High-speed pulse input
• Output Type: Transistor output
• Number of Inputs: 16 inputs
• Number of Outputs: 16 outputs
• Rated Input Voltage: 24 VDC
• Rated Output Voltage: 24 VDC
• Mounting Type: DIN rail mount (CJ2M rack system)
• Connection Type: Screw terminal
• Response Time: High-speed processing capability
• Isolation: Optical isolation between I/O and PLC
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CJ2M-MD212 Pulse I/O Unit
• Omron CJ1W-MD211 I/O Unit
• Omron CJ2M-OD211 Digital Output Module
