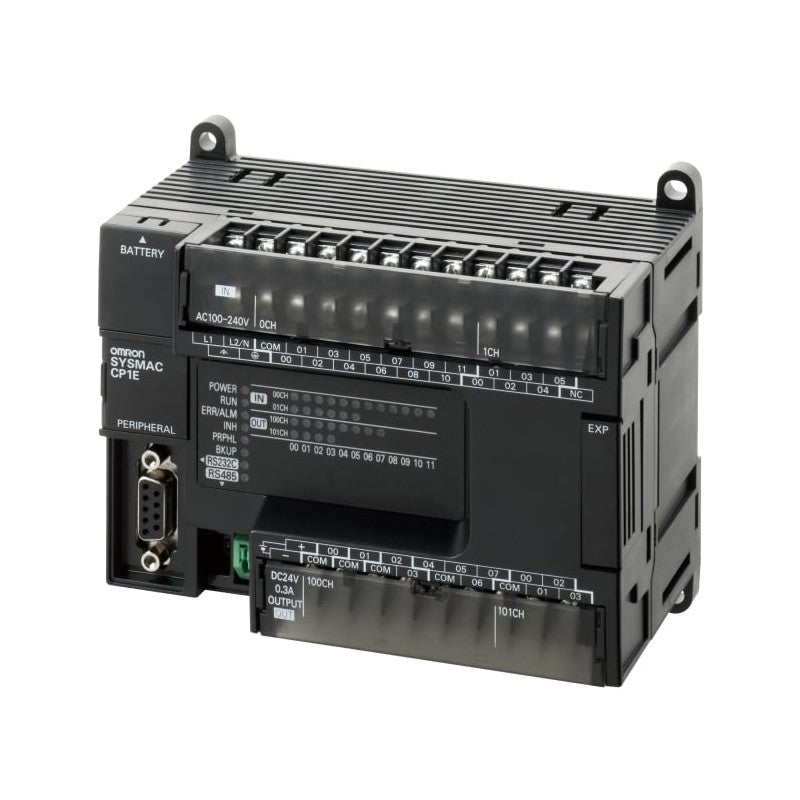

Omron CP1E-N30S1DR-A PLC Module CP1EN30S1DRA

Description:

CP1EN30S1DRA RELAY 18 IN 85 TO 264 VOLTS AC 20.4 TO 26.4 VDC The CP1E-N30S1DR-A is a high-performance and compact programmable logic controller (PLC) from Omron’s CP1E series, engineered to deliver efficient control and automation for a range of industrial applications. This model features 30 I/O points with 16 digital inputs and 14 digital outputs, including relay outputs for direct control of devices and sensors. It includes a built-in RS-232C communication port and supports expansion modules for increased I/O capacity. Designed for ease of programming and integration, the CP1E-N30S1DR-A is ideal for small to medium-sized automation tasks requiring reliable performance and flexibility.

Technical Specifications:

• Model: CP1E-N30S1DR-A
• Type: Programmable Logic Controller (PLC)
• I/O Configuration:
• Digital Inputs: 16 points (24V DC)
• Digital Outputs: 14 points (Relay type, 24V DC)
• Program Memory: 4K steps
• Data Memory: 2K words
• Communication Ports:
• Built-in Serial Port: 1 (RS-232C for communication)
• Operating Voltage: 24V DC
• Current Consumption: 500 mA (typical)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Dimensions (W x H x D): 80 x 90 x 75 mm
• Weight: Approximately 350 g
• Mounting Type: DIN rail mountable
• Environmental Protection: IP20 (dust-tight, protected against solid objects greater than 12 mm)
• Compliance: RoHS compliant
