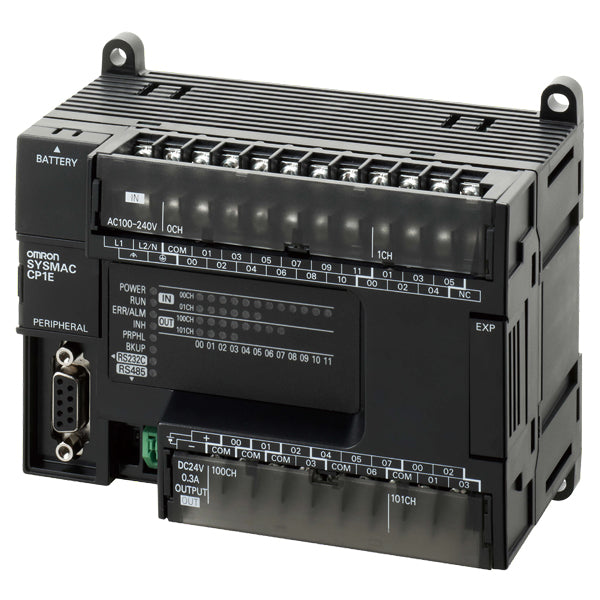

Omron CP1E-N30SDT-D PLC Module CP1EN30SDTD

Description:

CP1EN30SDTD PROAMMABLE CONTROLLER 0.02AMP 24VDC 100-240VAC 18 INPUTS 12 OUTPUTS 8K STEPS 8K WORDS RS232C USB PORTS The CP1E-N30SDT-D is a compact and efficient programmable logic controller (PLC) from Omron’s CP1E series, designed to offer robust control and automation capabilities for a range of industrial applications. This model includes 30 I/O points, featuring 16 digital inputs and 14 digital outputs, with the outputs being transistor type for faster switching and durability. The CP1E-N30SDT-D also integrates a built-in RS-232C serial communication port for easy connectivity and data exchange with other devices. Its compact design, combined with versatile I/O configuration and reliable performance, makes it an excellent choice for small to medium-sized automation systems.

Technical Specifications:

• Model: CP1E-N30SDT-D
• Type: Programmable Logic Controller (PLC)
• I/O Configuration:
• Digital Inputs: 16 points (24V DC)
• Digital Outputs: 14 points (Transistor type, 24V DC)
• Program Memory: 4K steps
• Data Memory: 2K words
• Communication Ports:
• Built-in Serial Port: 1 (RS-232C for communication)
• Operating Voltage: 24V DC
• Current Consumption: 500 mA (typical)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Dimensions (W x H x D): 80 x 90 x 75 mm
• Weight: Approximately 350 g
• Mounting Type: DIN rail mountable
• Environmental Protection: IP20 (dust-tight, protected against solid objects greater than 12 mm)
• Compliance: RoHS compliant
