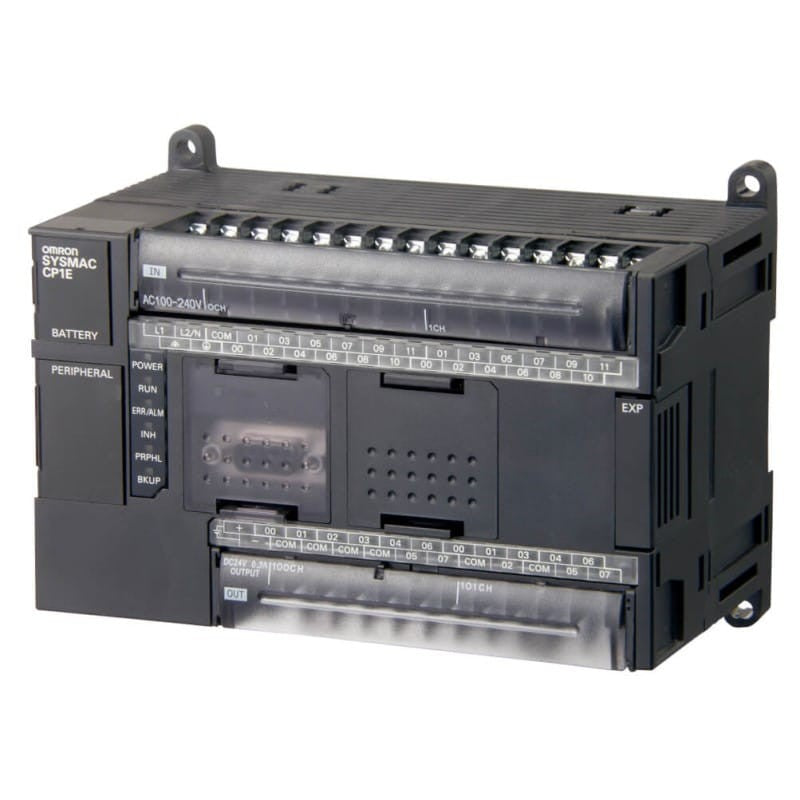

Omron CP1E-N40DR-A CPU RELAY OUTPUT PLC MODULE 40 I/O PORTS CP1EN40DRA

Description:

CP1EN40DRA CONTROLLER CPU CP1E SERIES 24 INPUTS 16 RELAY OUTPUTS 100 TO 240 VAC 24 INCH 16 OUT AC PS RS232 The CP1E-N40DR-A is a compact and versatile programmable logic controller (PLC) from Omron’s CP1E series, designed for a range of industrial automation applications. Featuring a built-in CPU with a processing speed of up to 2.5 k steps per second, this PLC offers 40 input/output points, including 20 discrete inputs and 20 relay outputs. The CP1E-N40DR-A is equipped with an integrated RS-232C communication port, enabling straightforward data exchange with other devices and systems. Its compact and rugged design ensures reliable performance in various industrial environments. With a user-friendly programming interface and support for a wide range of expansion options, the CP1E-N40DR-A is an ideal choice for cost-effective, flexible automation solutions.

Technical Specifications:

• Model: CP1E-N40DR-A
• Type: Programmable Logic Controller (PLC)
• CPU Processing Speed: 2.5 k steps per second
• I/O Configuration:
• Inputs: 20 discrete inputs (24V DC)
• Outputs: 20 relay outputs (250V AC, 2A per channel)
• Built-in Communication Ports: 1 x RS-232C serial communication port
• Power Supply: 100-240V AC
• Memory: 2,048 steps of program memory, 1,024 data memory words
• Programming: Support for CX-Programmer software (Omron)
• Dimensions (W x H x D): 90 x 90 x 80 mm (approx.)
• Weight: 0.6 kg (approx.)
• Mounting: DIN rail or panel mount
• Environmental Conditions: Operating temperature range of 0°C to 55°C (32°F to 131°F), relative humidity up to 85%
• Certification: CE, UL
