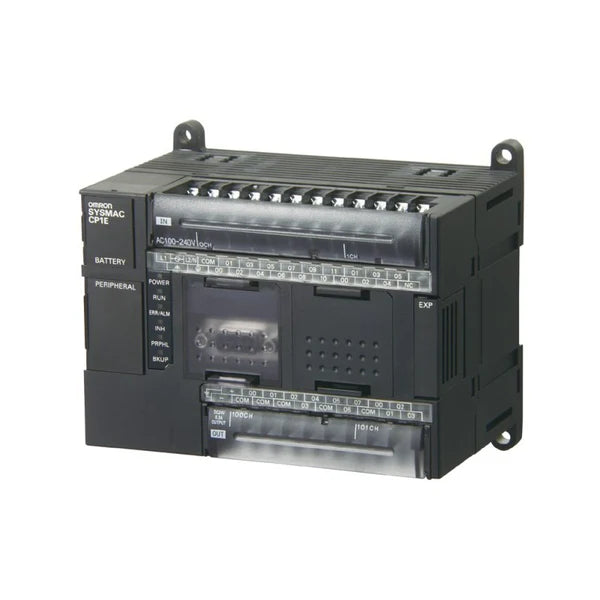

Omron CP1E-N40SDT-D PLC Module CP1EN40SDTD
Omron CP1E-N40SDT-D PLC Module CP1EN40SDTD
Couldn't load pickup availability





Description:
CP1EN40SDTD NO UL 24IN16NPN DC RS232 The CP1E-N40SDT-D is a compact and versatile programmable logic controller (PLC) from Omron’s CP1E series, designed to provide reliable and efficient control for a range of industrial automation applications. This model features 40 I/O points, including 24 digital inputs and 16 digital outputs, with the outputs being of transistor type for faster switching and high durability. The PLC includes a built-in RS-232C serial port, facilitating easy communication with other devices and systems. Its robust performance, combined with its high-density I/O configuration and compact design, makes it ideal for small to medium-sized automation tasks.
Technical Specifications:
- Model: CP1E-N40SDT-D
- Type: Programmable Logic Controller (PLC)
- I/O Configuration:
- Digital Inputs: 24 points (24V DC)
- Digital Outputs: 16 points (Transistor type, 24V DC)
- Program Memory: 8K steps
- Data Memory: 4K words
- Communication Ports:
- Built-in Serial Port: 1 (RS-232C for communication)
- Operating Voltage: 24V DC
- Current Consumption: 700 mA (typical)
- Operating Temperature Range: 0°C to +55°C
- Storage Temperature Range: -25°C to +70°C
- Dimensions (W x H x D): 80 x 90 x 95 mm
- Weight: Approximately 400 g
- Mounting Type: DIN rail mountable
- Environmental Protection: IP20 (dust-tight, protected against solid objects greater than 12 mm)
- Compliance: RoHS compliant
