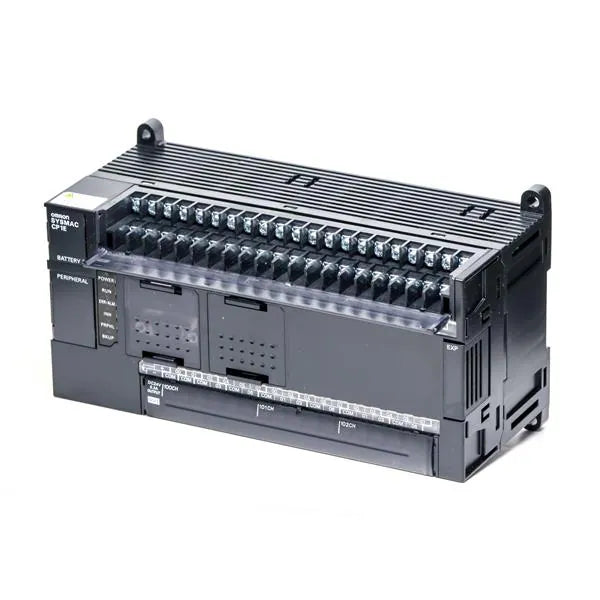

Omron CP1E-N60DT-D PLC CP1EN60DTD

Description:

CP1EN60DTD CPU CONTROL LOGIC MODULE 36INPUT 24OUTPUT 24VDC The CP1E-N60DT-D is a versatile and compact programmable logic controller (PLC) from Omron’s CP1E series, designed for efficient and reliable control in various industrial automation applications. This model features 60 I/O points, including 30 digital inputs and 30 digital outputs, with the outputs configured as transistor type for high-speed switching and durability. The PLC is equipped with a built-in RS-232C communication port, facilitating easy integration and communication with other devices. Its high-density I/O, combined with a robust and compact design, makes it well-suited for small to medium-sized automation tasks.

Technical Specifications:

• Model: CP1E-N60DT-D
• Type: Programmable Logic Controller (PLC)
• I/O Configuration:
• Digital Inputs: 30 points (24V DC)
• Digital Outputs: 30 points (Transistor type, 24V DC)
• Program Memory: 8K steps
• Data Memory: 4K words
• Communication Ports:
• Built-in Serial Port: 1 (RS-232C for communication)
• Operating Voltage: 24V DC
• Current Consumption: 800 mA (typical)
• Operating Temperature Range: 0°C to +55°C
• Storage Temperature Range: -25°C to +70°C
• Dimensions (W x H x D): 80 x 90 x 120 mm
• Weight: Approximately 500 g
• Mounting Type: DIN rail mountable
• Environmental Protection: IP20 (dust-tight, protected against solid objects greater than 12 mm)
• Compliance: RoHS compliant
